Track Tie Punch – O gauge

$22.00

Used to tight loose tie, install insulators or reshape tie. This tool is design to work only on Lionel or K-line style O gauge tubular track.

SKU: TTP-O Categories: ,

Download Direction sheet here:

DIRECTION-TRACK KIT

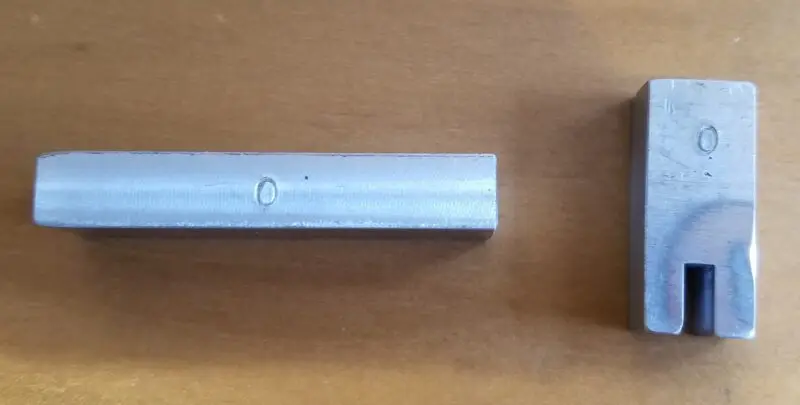

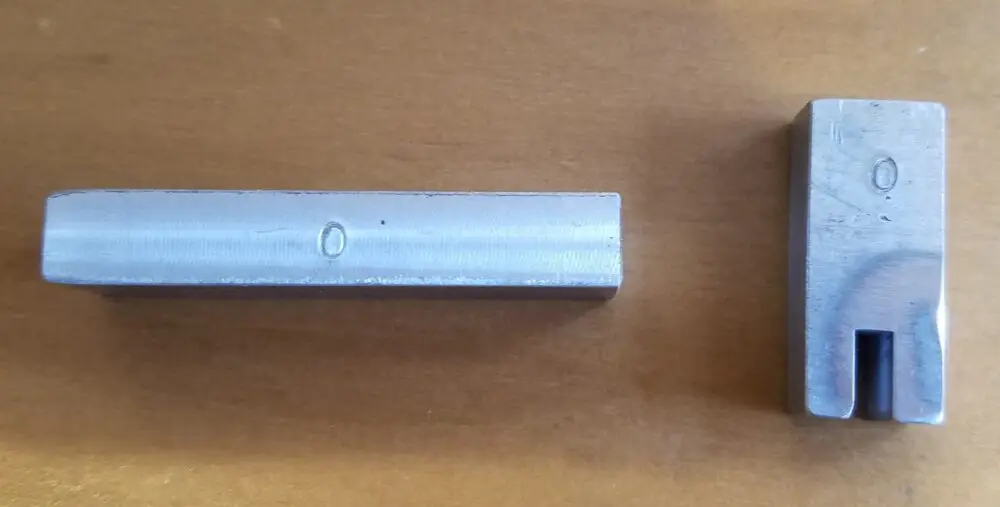

O-Gauge Track Tie Punch

– Sized for Lionel & K-Line O-Gauge track.

– Relocate Tie when cutting & shortening track.

– Tight loose Track Tie on old track.

– Tap end of punch with a hammer to tighten Ties.

– Can be use to punch flat the screw holes in the ties over tightened.

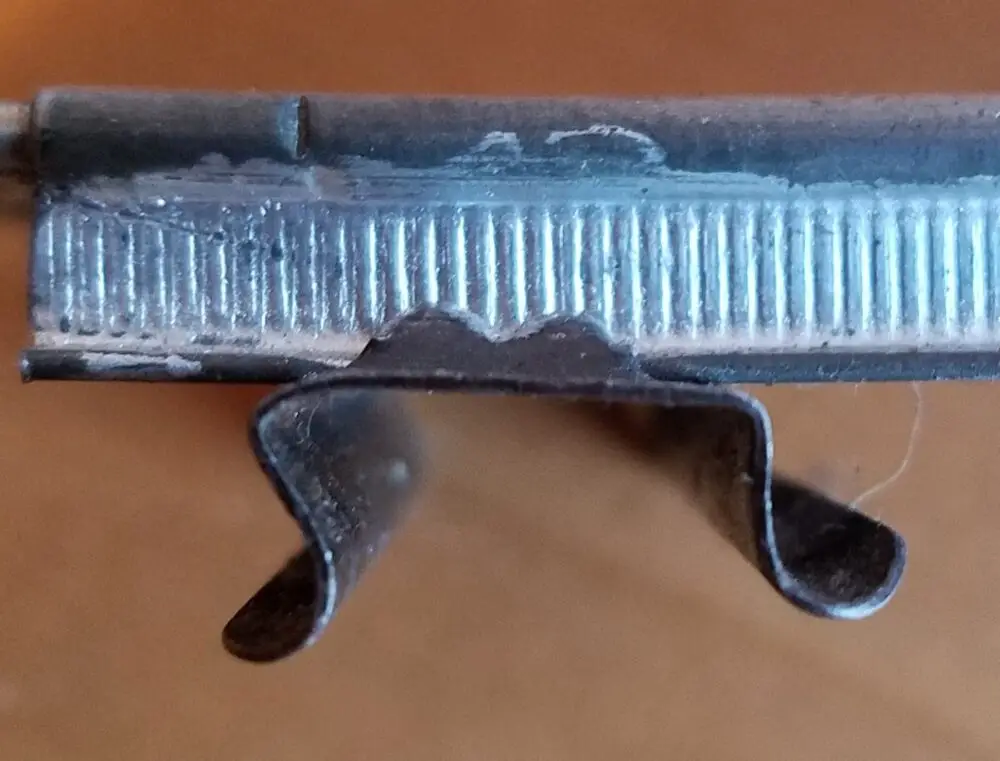

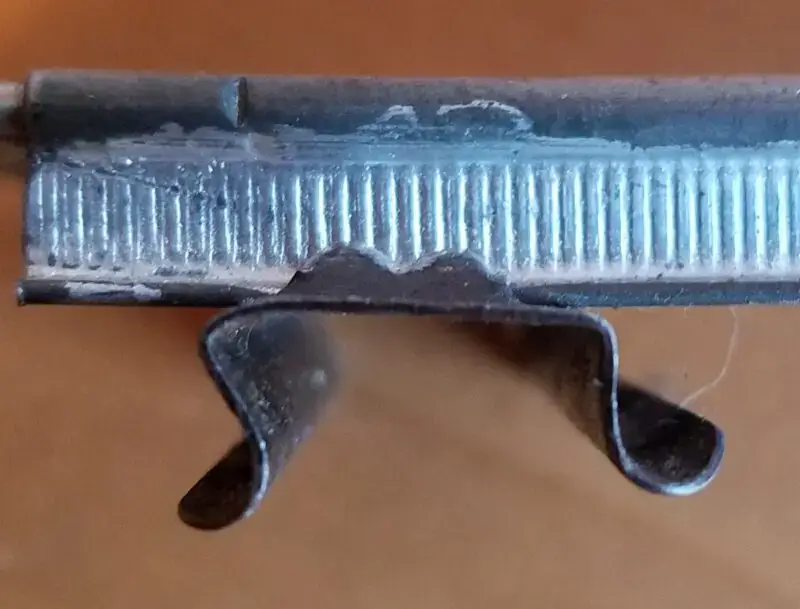

– Also as a jig to straighten bent ties.

– Can be fixed by flipping the track over and tapping the lower block to spread the side of the tie or for flatting the hole after being over tightened. Then use channel locks or a vice to close up the side to the lower block.

– Machined from solid Aluminum.

See photo’s above or Track Tie webpage for detail description, sample use photos & direction.All tools made in small production runs in our home shop. Actual tool may vary some as we our always making improvements to the designs.If you don’t see the tool you need, ask it may be in the works & the next idea.

Weight 3 oz
Dimensions 9 × 7 × 0.75 in
