Wheel Cups
Wheel Cups

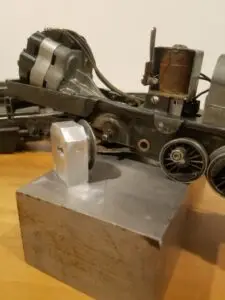

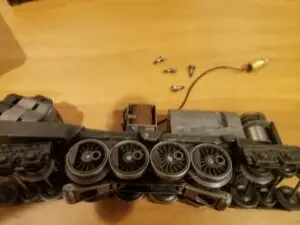

Quartering Wheel Cups

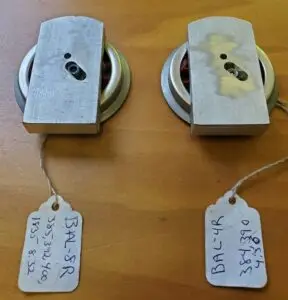

- This tool was designed to Align the wheels on Steam engines so that the wheels have an 87 degree offset.

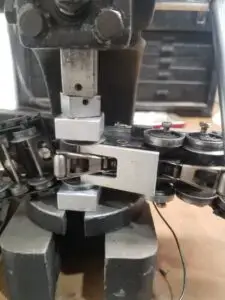

- Can be used in a standard Arbor Press or Vice.
- The tool is machined out of solid aluminum
- Engines listed are what we design around may work on newer version of these engines, but untested.
- Some engines require only 2 cups, a 0 & 87 cup. Others require 4 (2 for the outer wheels, 2 for the center wheels. Wheels will be marked with:
Outer – 0 & 87
Center – C0 & C87
NON-Quartering Wheel Cups
- This tool was designed to press on the wheels on Diesels engines where the quartering offsetting are not required.
- Can be used in a standard Arbor Press or Vice.
- The tool is machined out of solid aluminum
- 2 cup sets
- Engines listed are what we design around may work on newer version of these engines, but untested.

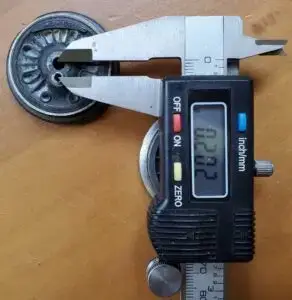

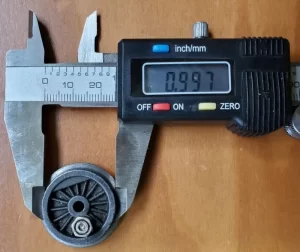

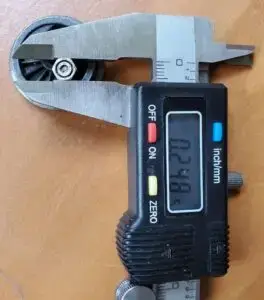

What Measurement you need to check before ordering.
Engines listed have been tested to work. Other newer version of these listed engine may work to. Check measurement before ordering.
Lionel O gauge Wheel Cup

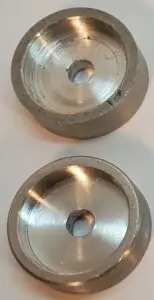

WC-O-D1 Wheel Cup: $35
Cup Type: Non-Quartering
Design for Lionel
Engines #’s: Most Post-War Diesels
Max Outer Dia: 0.89″

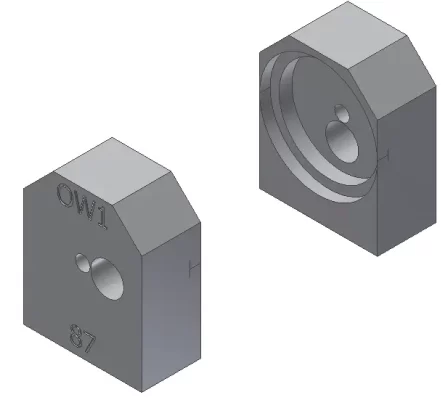

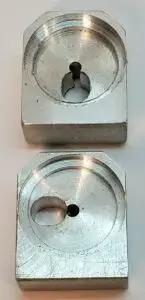

WC-O-W1 Wheel Cup: $54
Cup Type: Quartering
Design for Lionel
Engines #’s: 671, 681, 682, 2020
Wheel Types: Both style wheels. Slot hole so it will would for both screw offsets.
Max Outer Dia: 1.01″
Offset: 0.20″ to 0.23″
Indexing Hole Size: 0.28″

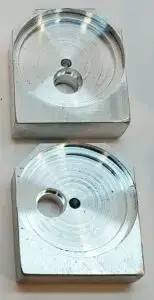

WC-O-W2 Wheel Cup: $56
Cup Type: Quartering
Design for Lionel
Engines #’s: 726 & 736
Wheel Types: Both Baldwin & Spoke
Max Outer Dia: 1.26″
Offset: 0.20″
Indexing Hole Size: 0.28″

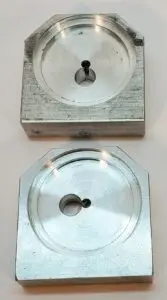

WC-O-W3 Wheel Cup: $58
Cup Type: Quartering
Design for Lionel
Engines #’s: 224, 646, 675, 2025, 2035, 2046, 2055, 2056, 2065
Max Outer Dia: 1.39″
Offset: 0.20″
Indexing Hole Size: 0.28″

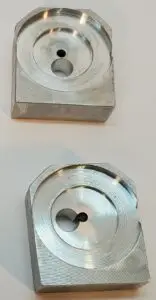

WC-O-W4 Wheel Cup: $56
Cup Type: Quartering
Design for Lionel
Engines #’s: 2026 (ver51-53), 2016, 2018, 2034, 2036, 2037
Max Outer Dia: 1.24″
Offset: 0.19″
Indexing Hole Size: 0.28″

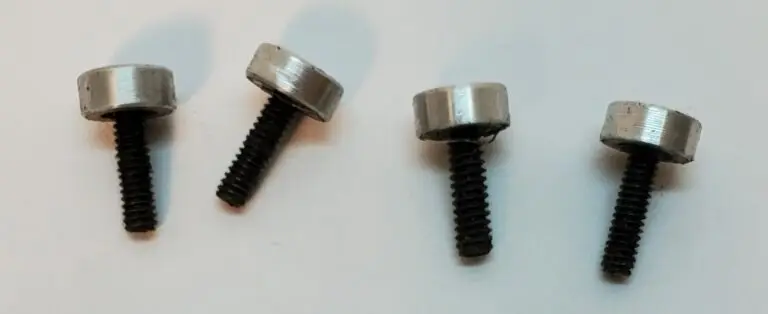

Indexing Screws Set: $18
On some engines the bolt head size is not the 1/4″ as the hole in our cups are design to accept.So they will not work correctly. This will fix in most case. Lionel like to used a lot of different threads over the years.
- Not all screw heads for the side bars are a ¼” head.
- 1 set of Indexing Screws with 3-48 thread & ¼” Round head.
- 1 set of Indexing Screws with 4-40 thread & ¼” Round head.
- Designed for use with our O Gauge Lionel Quartering Cups
WC-O-COMB Wheel Cup: $254
Cup Type: Non- Quartering & Quartering
Design for Lionel

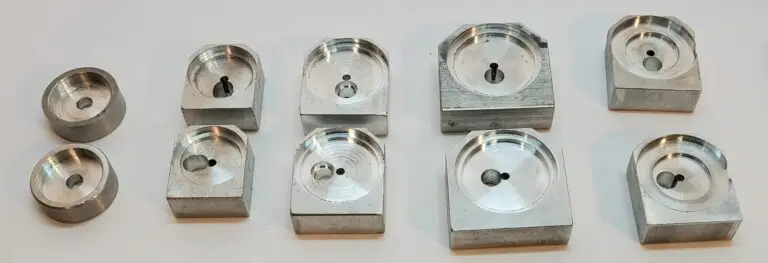

This comb deal includes:
WC-O-D1
WC-O-W1
WC-O-W2
WC-O-W3
WC-O-W4
Indexing Screw set
American Flyer O gauge Wheel Cup

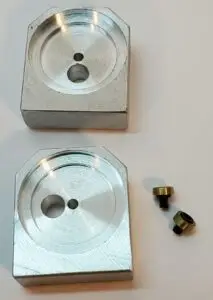

WC-O-W5 Wheel Cup: $68
Cup Type: Quartering
Design for American Flyer O gauge 3 rail
Engines #’s: 401, 553, 561, 565, may work on others.
Wheel Types: Will work on wheels with or without the post. Use included indexing screws on either type wheel.
Max Outer Dia: 1.19″
Offset: 0.23″
Indexing Hole Size: 0.25″
American Flyer HO gauge Wheel Cup

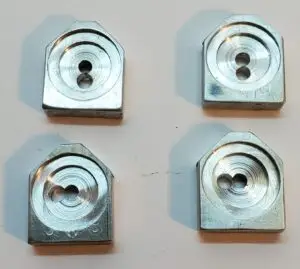

WC-HO-W1 Wheel Cup: $62
Cup Type: Quartering
Design for American Flyer
Engines #’s: Small Wheels
Max Outer Dia: Outer 0.65″ / Center 0.64″
Offset: 0.11″
Indexing Hole Size: Outer 0.14″ / Center 0.12″*
Center use post on wheel

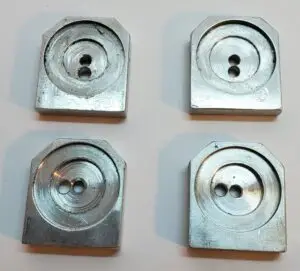

WC-HO-W2 Wheel Cup: $62
Cup Type: Quartering
Design for American Flyer
Engines #’s: Large Wheels
Max Outer Dia: Outer 0.90″ / Center 0.89″
Offset: 0.11″
Indexing Hole Size: Outer 0.65″ / Center 0.064″*
Center use post on wheel
