E-Unit Tools

Tools designed to service Mechanical E-Units in Lionel & American Flyer Engines.

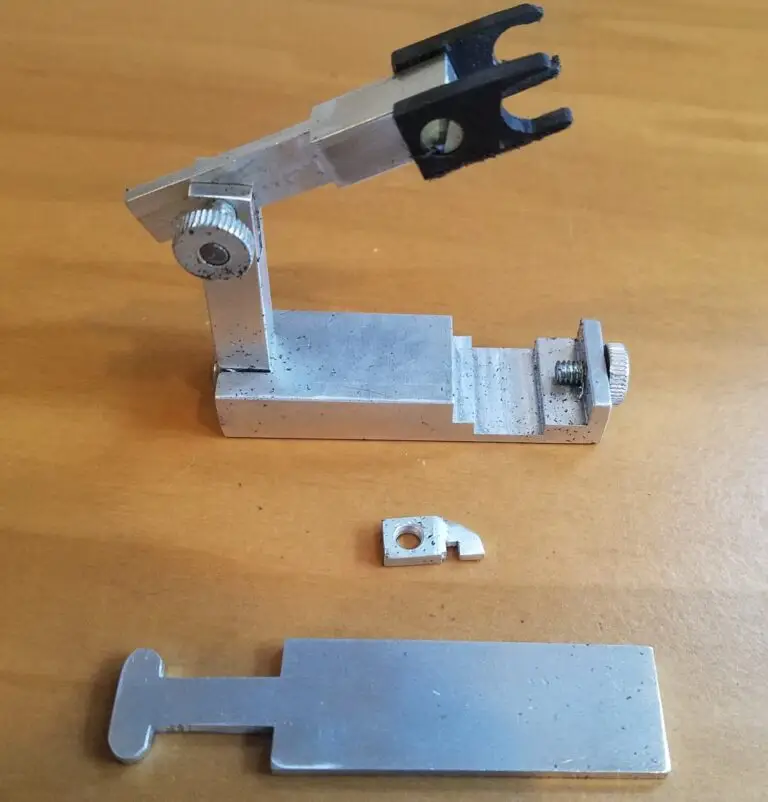

E-Unit Jig & Breaker Bar Kit for Lionel Mechanical E-units $74

This tool kit is for servicing on the E-unit in older Lionel Trains. These E-Units are used in Standard, O & O27 Engines.

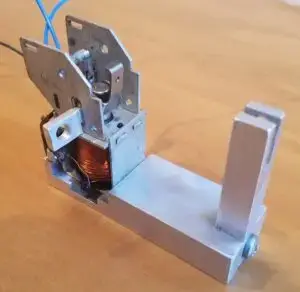

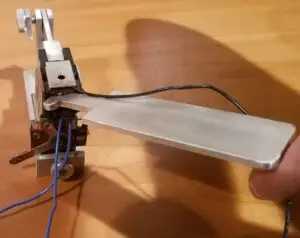

 It will break the side plates free with the Breaker Bar & the Jig will hold all the parts in place when trying to reassemble the E-unit. Use this tool to clean & repair old E-units.

All machine from solid Aluminum with Nylon plastic finger for the drum.

Kit Includes:

  • Breaker Bar
  • E-unit Jig

  • Plunger Holder

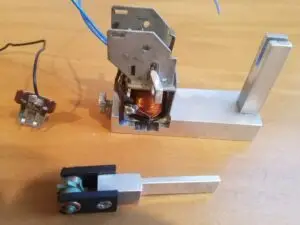

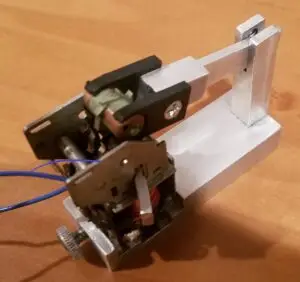

E-UNIT-5
E-UNIT-1
E-UNIT-10

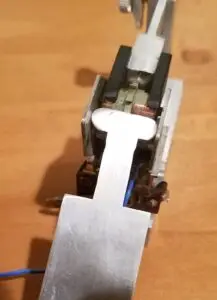

E-UNIT-9
E-UNIT-7
E-UNIT-4
E-UNIT-2

Click here for E-Unit for O Gauge - Direction Download

Replacement parts including our Breaker bar are available thru the online store front.

E-Unit Anvil for Lionel Mechanical E-units $30

This tool kit is for servicing on the E-unit in older Lionel Trains. These E-Units are used in Standard, O & O27 Engines.

Design of use when replacing the rivet in the Selector Switch & Contacts on Lionel mechanical E-Units

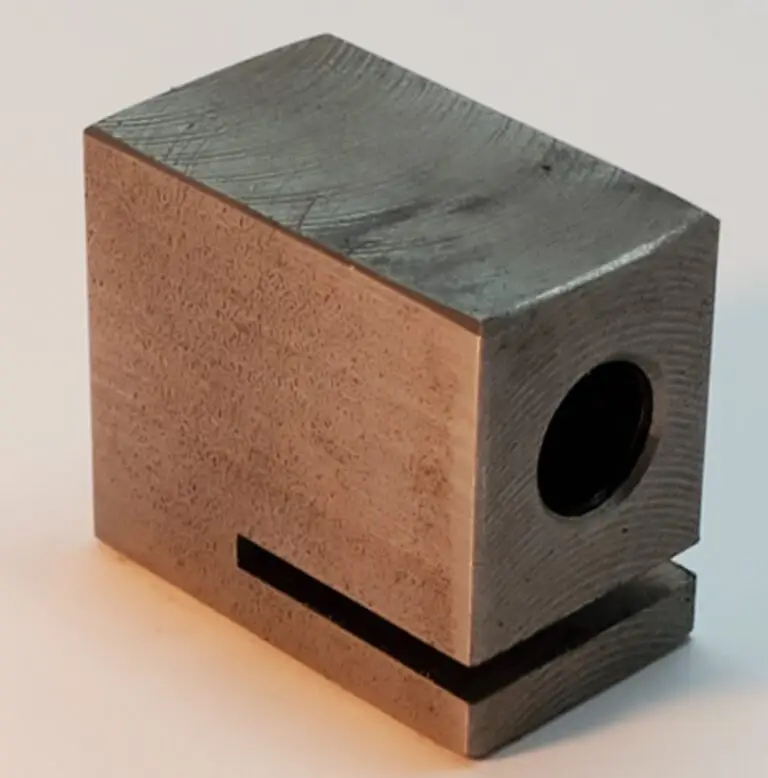

Machine out of solid Steel

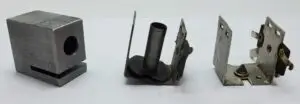

With the hole in the center to accept the Post or Pin style E-Unit coil cage.
With the hole in the center to accept the Post or Pin style E-Unit coil cage.

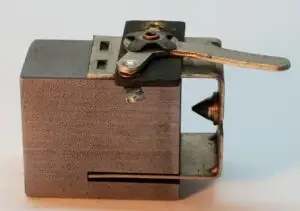

Pin Style Cage
Pin Style Cage

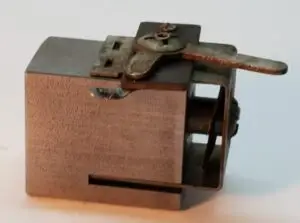

Post Style Cage
Post Style Cage

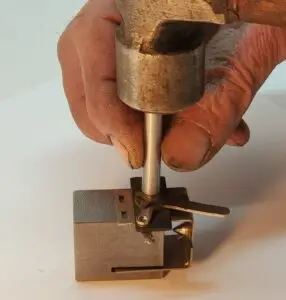

Can be used with a Hammer & Punch
Can be used with a Hammer & Punch

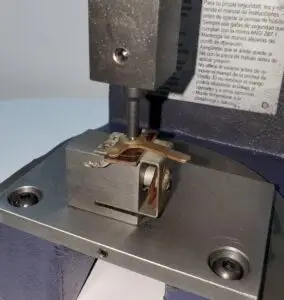

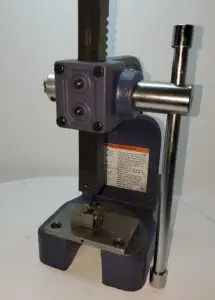

Also be used in our Rivet Press
Also be used in our Rivet Press
20210415_142039

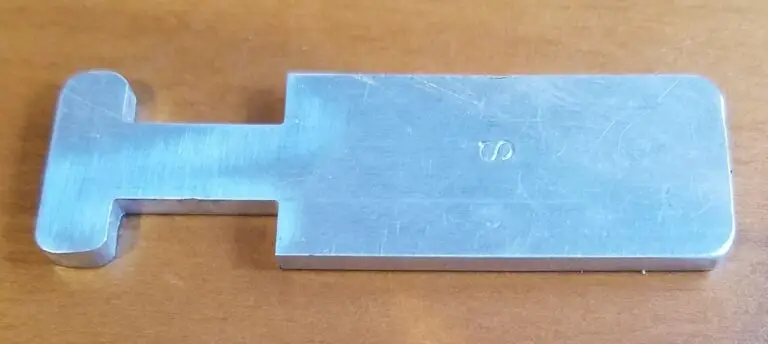

E-Unit Breaker Bar for American Flyer Mechanical E-units $20

– This Breaker Bar is for servicing on the Mechanical Three Position E-unit in American Flyer. It will break the side plates free with the Breaker Bar.

– Use this tool to clean & repair old E-units.

– Design to split the E-Unit just enough to remove drum but not over spread E-Unit.

S-EUNIT-9

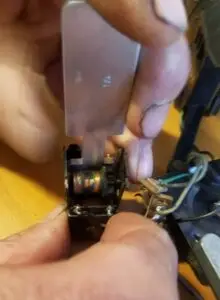

S-EUNIT-5
S-EUNIT-4

Click Here For E-Unit for S Gauge - Direction Download

E-Unit & Motor Test Station

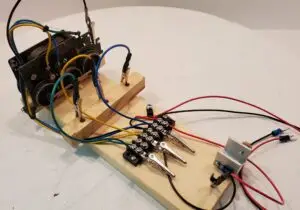

  • A test fixture for testing of Lionel 3 position E-units &/or Single coil field motors after being service or fixed.
  • This can be done without being reinstalled in an engine.
  • Test E-units with attached motor
  • Or install a good E-unit and connect another motor for testing. Just switch ground lead (Black wire w/ alligator clip) to motor being use for testing.

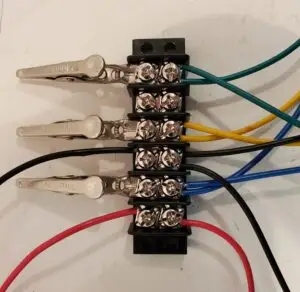

  • Easy connects to any standard Lionel transformer. The Red wire connects to the Hot terminal & the Black wire connects to U or common terminal.

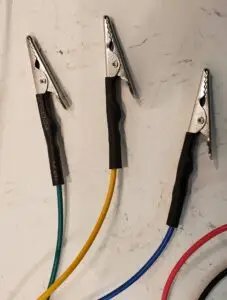

  • Alligator Clips for easy & secure connections

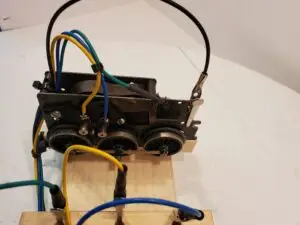

20230823_134247

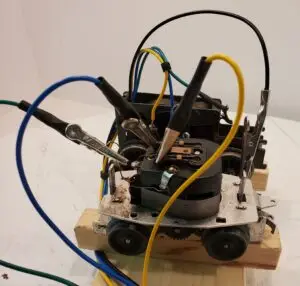

20230823_134454
20230823_134338
20230823_142509
20230823_142434

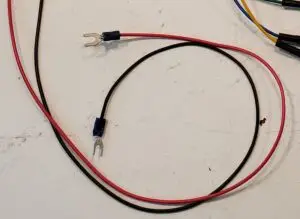

terminal 1

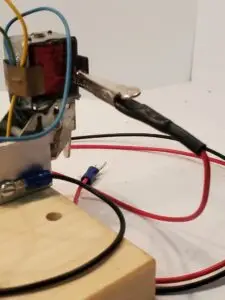

20230823_141914

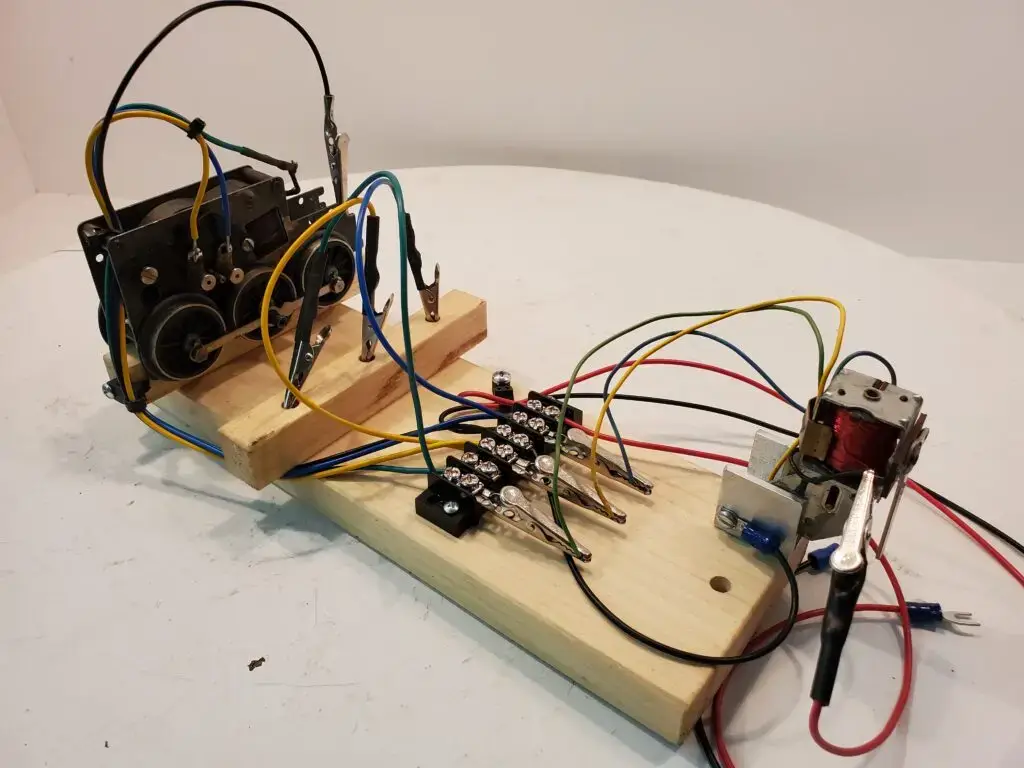

E-Unit & Motor Test Station – Complete $132

  • Base made from Poplar hardwood boards
  • Wood will have a coat of polyurethane on them. Color of wood will vary a little.
  • A 6 Drive wheel motor installed with sidebars. Motor may vary from picture.

E-Unit & Motor Test Station – Kit $82

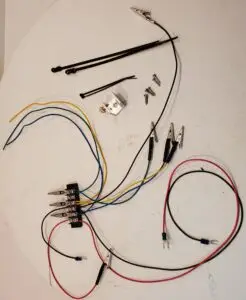

  • Complete wire hardness, E-Unit holder,
    Mounting Screws & Zip ties included.
  •  Will need to make a board & provide motor to finish.
  •   Can hard connect a motor like Complete Station
    or remove Hard connect wires & use the     Alligator clip
    wire to soft connect a motor for testing.
