Wheel Pulling Tools

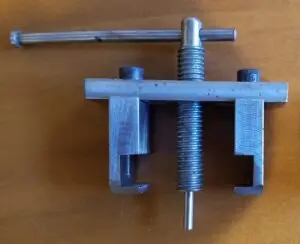

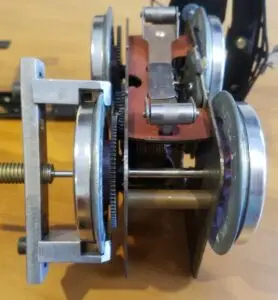

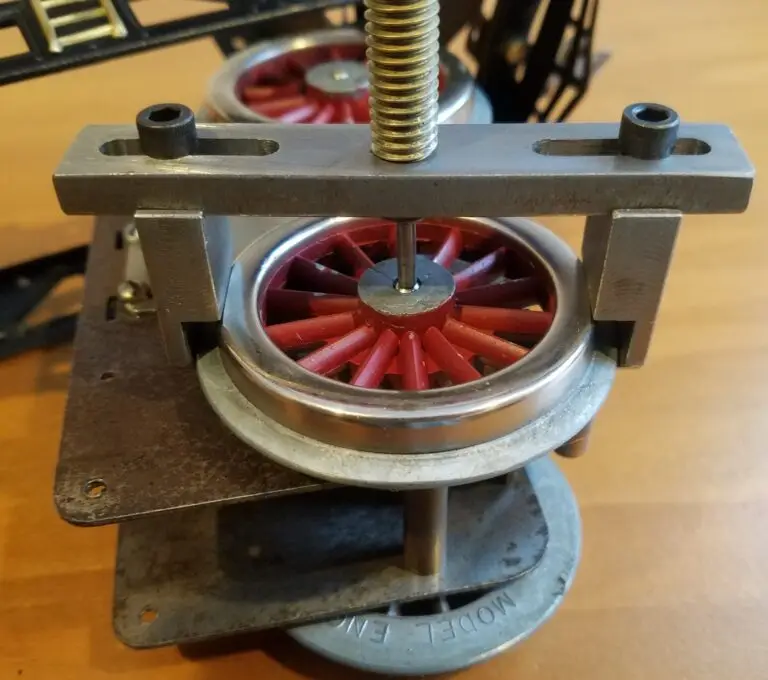

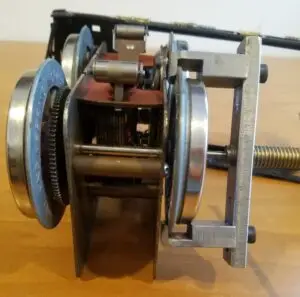

Large Gauge Wheel Puller System
Our jaws hook the wheel deeper in so they are pulling on the thicker part of the wheel, this will greatly decrease the chances of break old brittle wheels.
It was design to work on most older Lionel & American Flyer Standard & O Gauge Engines but will work on many other ones as well.

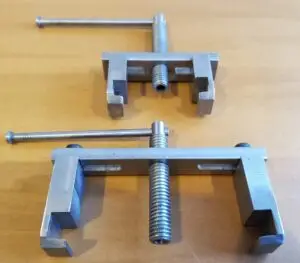

Two different crossbars available depending on gauge. Available in for Standard & O/O27 Gauges.

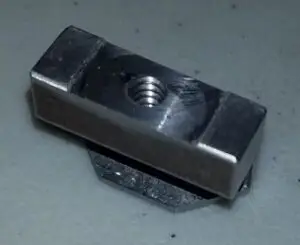

Top of jaws have an Alignment Groove
Replaceable Harden Press Pin
Material
Handle – Soft steel

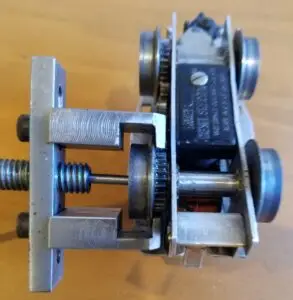

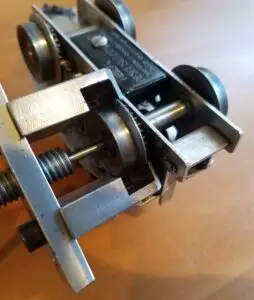

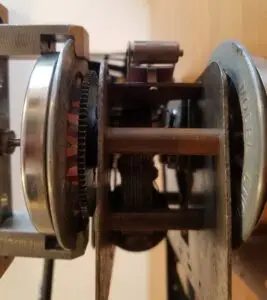

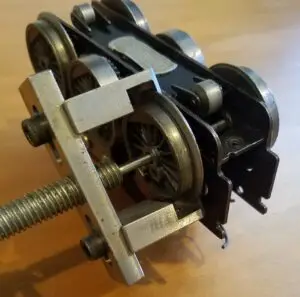

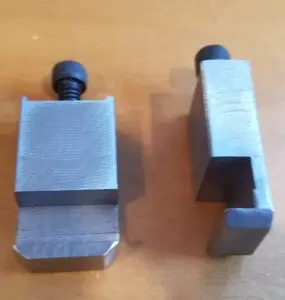

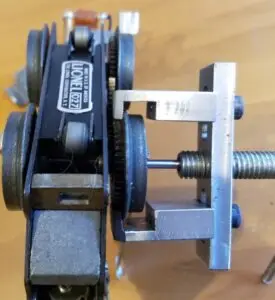

Standard Duty Jaws
- Our Original Design
- This is our workhouse jaws. With the thicker larger jaws they are meant to get the job done.
- Design for engine with the drive gears on the backside of the wheel.
- Will pull wheel off axle on other side after removing it from case. Even if you used the Special Duty Jaws to remove the first wheel.
- Stronger Jaws design
- Machined from solid steel.
- Works on

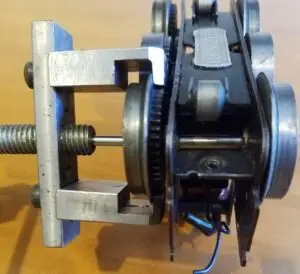

– Lionel Scouts, Praire, & Hudsons Engines

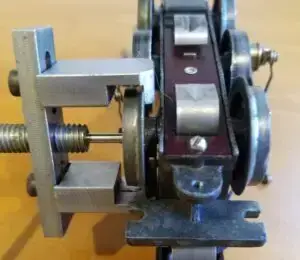

– American Flyer O gauge 3 rail engines
– Will work on many other engines as well.
– Some Marx Engines but not many.

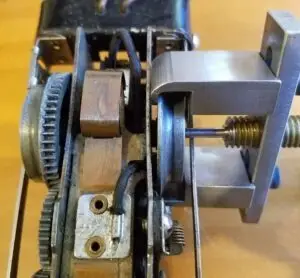

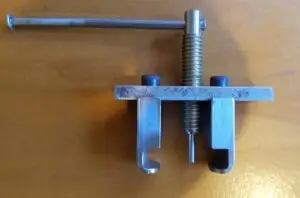

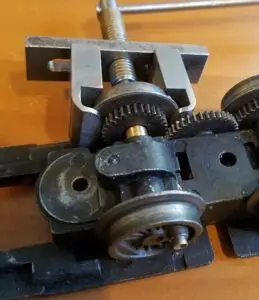

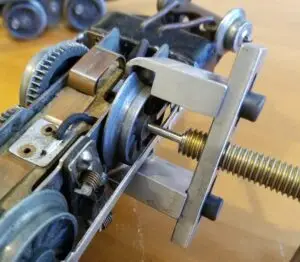

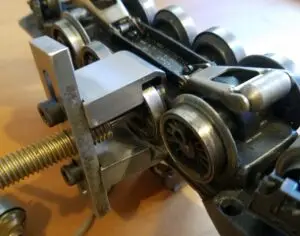

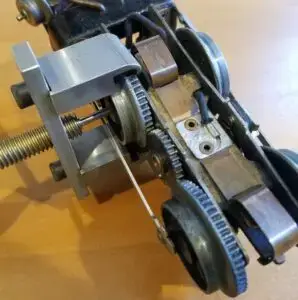

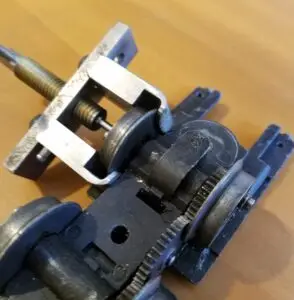

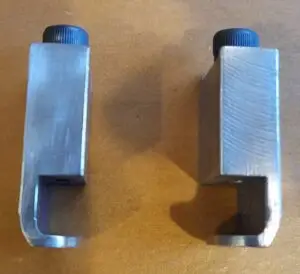

Special Duty Jaws

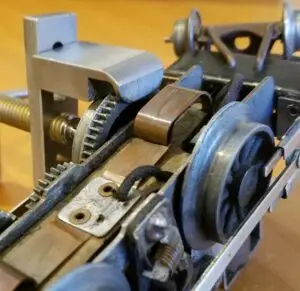

- This jaw design was meant to fit in tighter places or where the wheels are recessed into the motor case some.
- The bottom part of jaw is also thinner and will fit behind wheels that are tight to the motor case.
- Unfortunately this makes for a weaker jaw design that the Standard duty jaws
- Machined from solid steel.
- Works on
– Lionel Pennsylvania Steam Turbine 6-8-6
– Lionel 41, 42, 59 Gas Turbines
– Many Marx Engines
– Will work on many other engines as well.

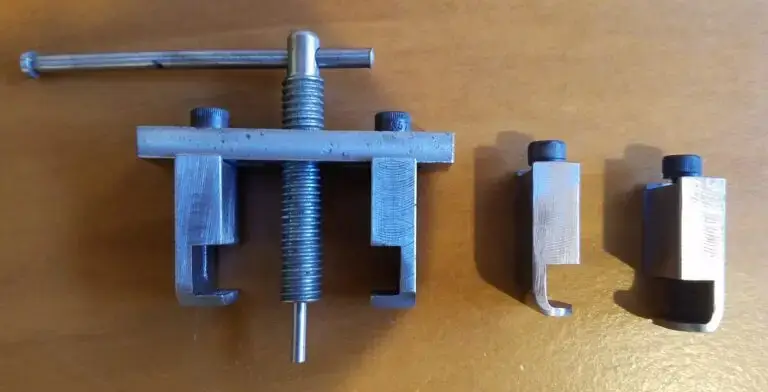

Large Gauge Wheel Puller Kits
Kit 1 - $99
Designed for Standard & O/O27 Gauges

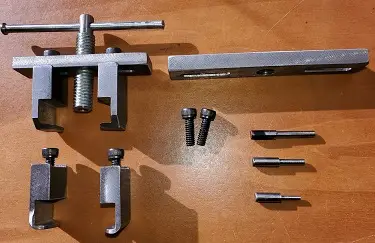

Kit 1 Includes:
- O Gauge Crossbar Assembly with Handle.
- Standard Gauge Crossbar
- Standard Duty Jaws (Set)
- Special Duty Jaws (Set)
- Replaceable Hardened Large Pin

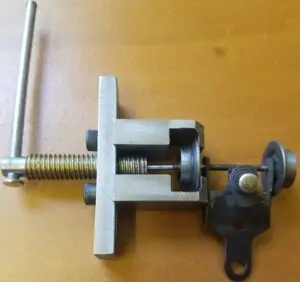

- Replaceable Hardened Small Pin(not shown)
Kit 2 - $84
Designed for O/O27 Gauges
Kit 2 Includes:
- O Gauge Crossbar Assembly with Handle.
- Standard Duty Jaws (Set)
- Special Duty Jaws (Set)
- Replaceable Hardened Large Pin
Kit 3 - $64
Designed for O/O27 Gauges
Kit 3 Includes:
- O Gauge Crossbar Assembly with Handle.
- Standard Duty Jaws (Set)
- Replaceable Hardened Large Pin
Kit 4 - $64
Designed for O/O27 Gauges
Kit 4 Includes:
- O Gauge Crossbar Assembly with Handle.
- Special Duty Jaws (Set)
- Replaceable Hardened Large Pin
Replacement parts are available thru the online store front.

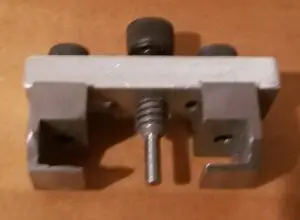

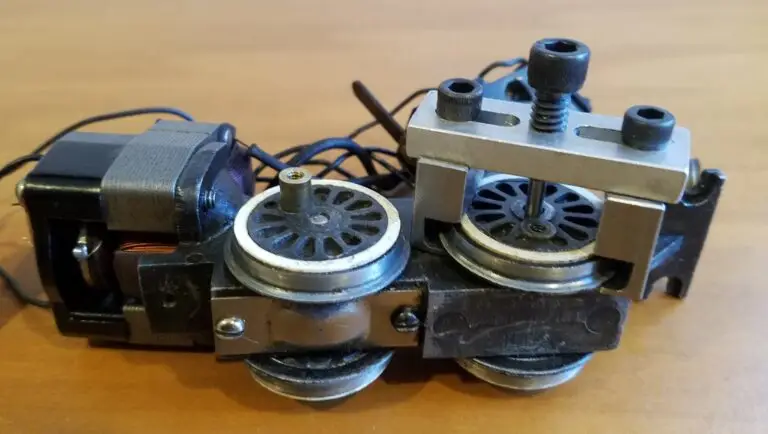

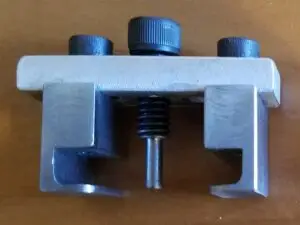

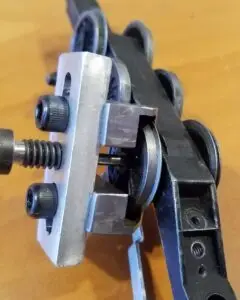

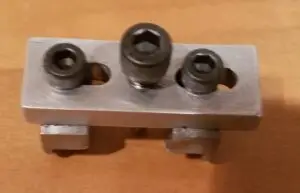

Small Gauge Wheel Puller System
Our jaws hook the wheel deeper in so they are pulling on the thicker part of the wheel, this will greatly decrease the chances of break old brittle wheels.
It was design to work on most older American Flyer S & HO Gauge Engines but will work on many other ones as well.
Design for axles 3/32″ & larger
Top of jaws have an Alignment Groove
requires 5/32″ & 3/16″ hex wrench
Material

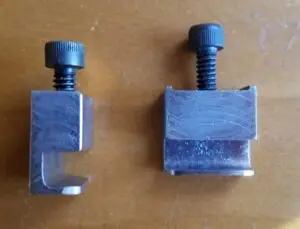

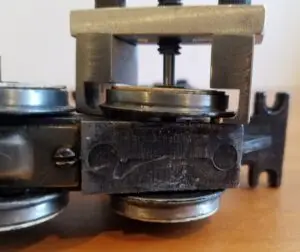

S Gauge Jaws

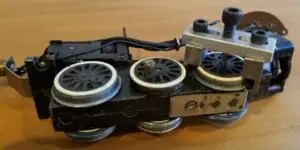

- It was design to work on older American Flyer S engines wheels but will work on many other small gauge engines wheels as well.

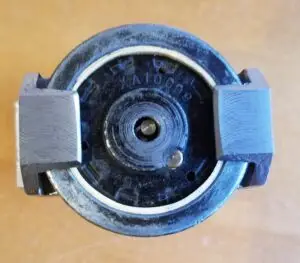

- Will pull all 3 parts of an American Flyer wheel in one pull.
- Machined out of solid steel.
- Requires 5/32″ & 3/16″ hex wrench

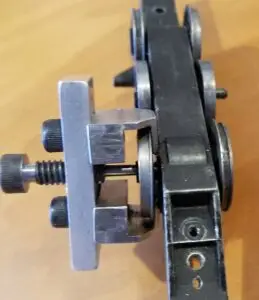

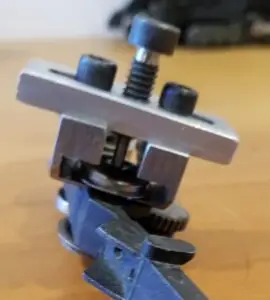

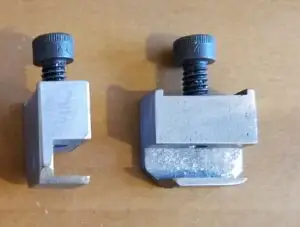

HO Gauge Jaws

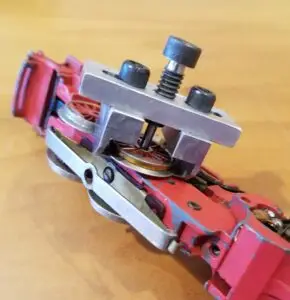

- It was design to work on older American Flyer HO engines wheels but will work on many other small gauge engines wheels as well. Have tested to work on some Marklin Engines.
- Machined out of solid steel.
- Requires 5/32″ & 3/16″ hex wrench

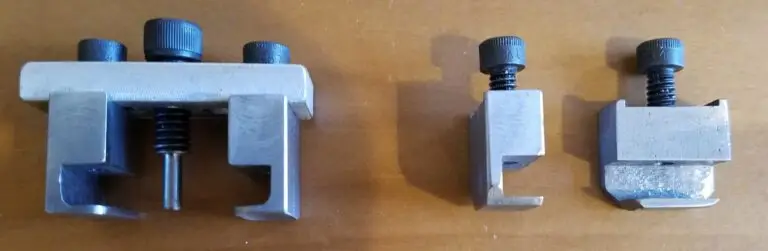

Small Gauge Wheel Puller Kits
Kit 1 - $79
Designed for S & HO Gauges
Kit 1 Includes:
- Small Gauge Crossbar Assembly
- S Gauge Jaws (Set)
- HO Gauge Jaws (Set)
Kit 2 - $56
Designed for S Gauges
Kit 2 Includes:
- Small Gauge Crossbar Assembly
- S Gauge Jaws (Set)
Kit 3 - $56
Designed for HO Gauges
Kit 3 Includes:
- Small Gauge Crossbar Assembly
- HO Gauge Jaws (Set)
Replacement parts are available thru the online store front.

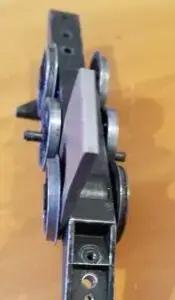

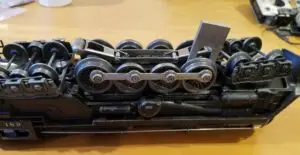

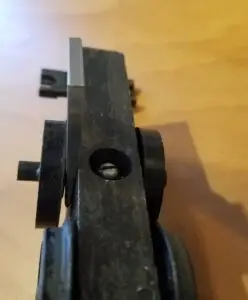

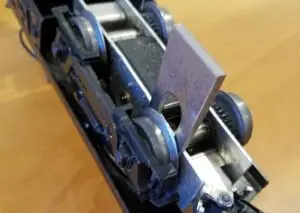

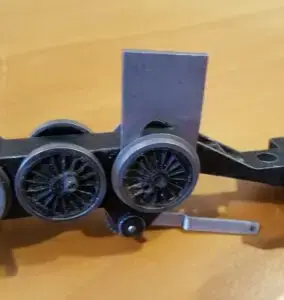

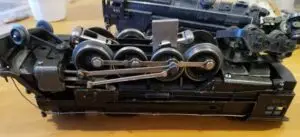

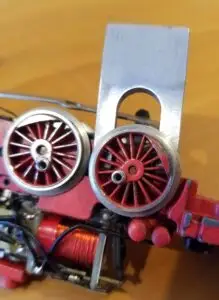

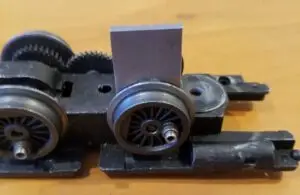

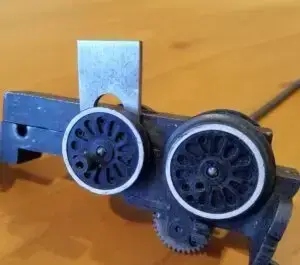

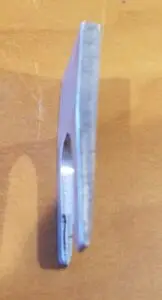

Wheel Wedge: $19
Stubborn wheel breaker tool, Sometimes our pullers need a little extra help.
– Gentle enough for brittle wheels. Its breaking the wheel free from the axle by pushing on the center of the wheel, the thickest part.
– Must use caution when using on Plastic or Aluminum engine cases. Can cause damage to them.
– Machined out of solid steel plate
– 7/16″ Center groove
– 9 deg Machined pitch
– Can be use on most scales. Have tried it on HO, S, & O engines
– Slide behide wheel & lightly tap it with a hammer, In most cases it will NOT pop the wheel completely off.
