Axle Block – 2 Sided

Axle Block – 2 Sided:  Wheel / Axel holding jig

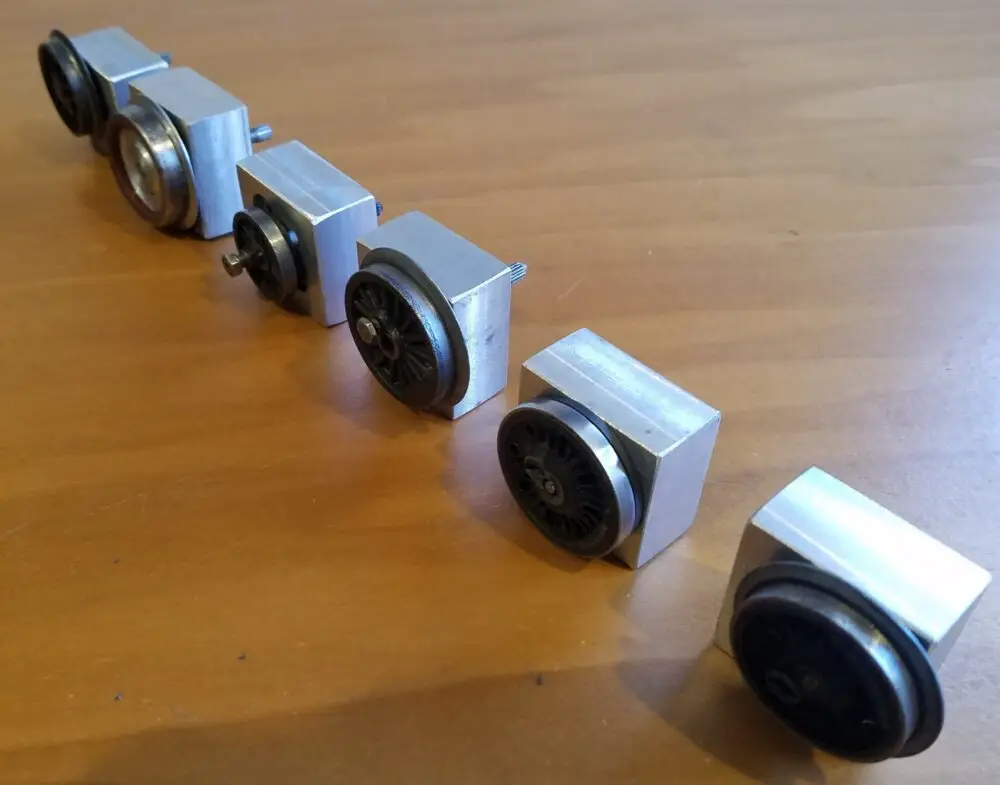

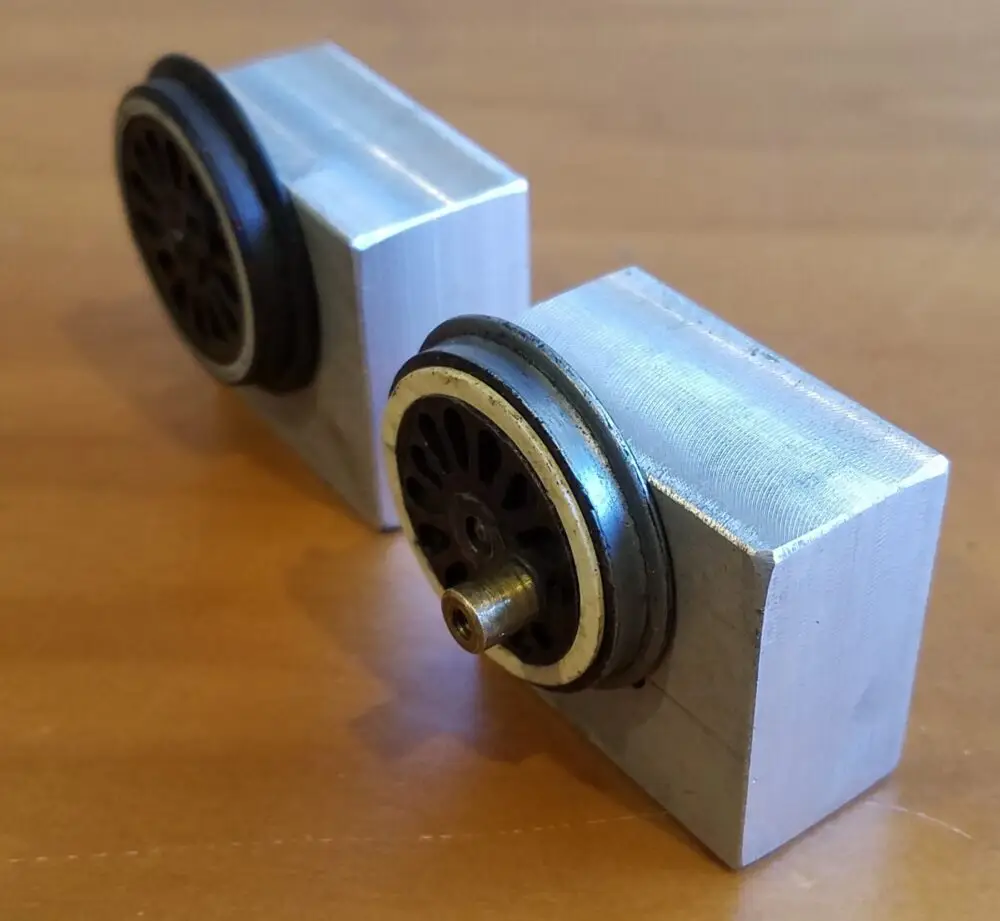

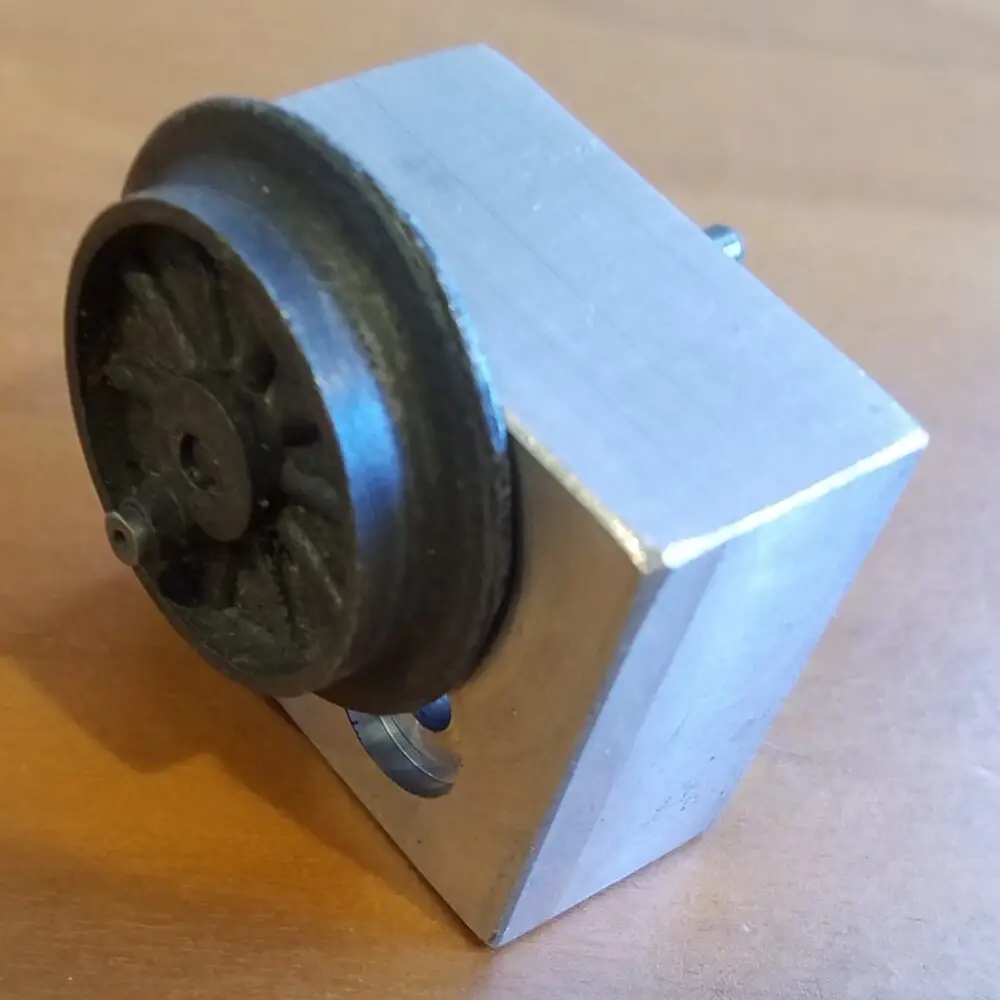

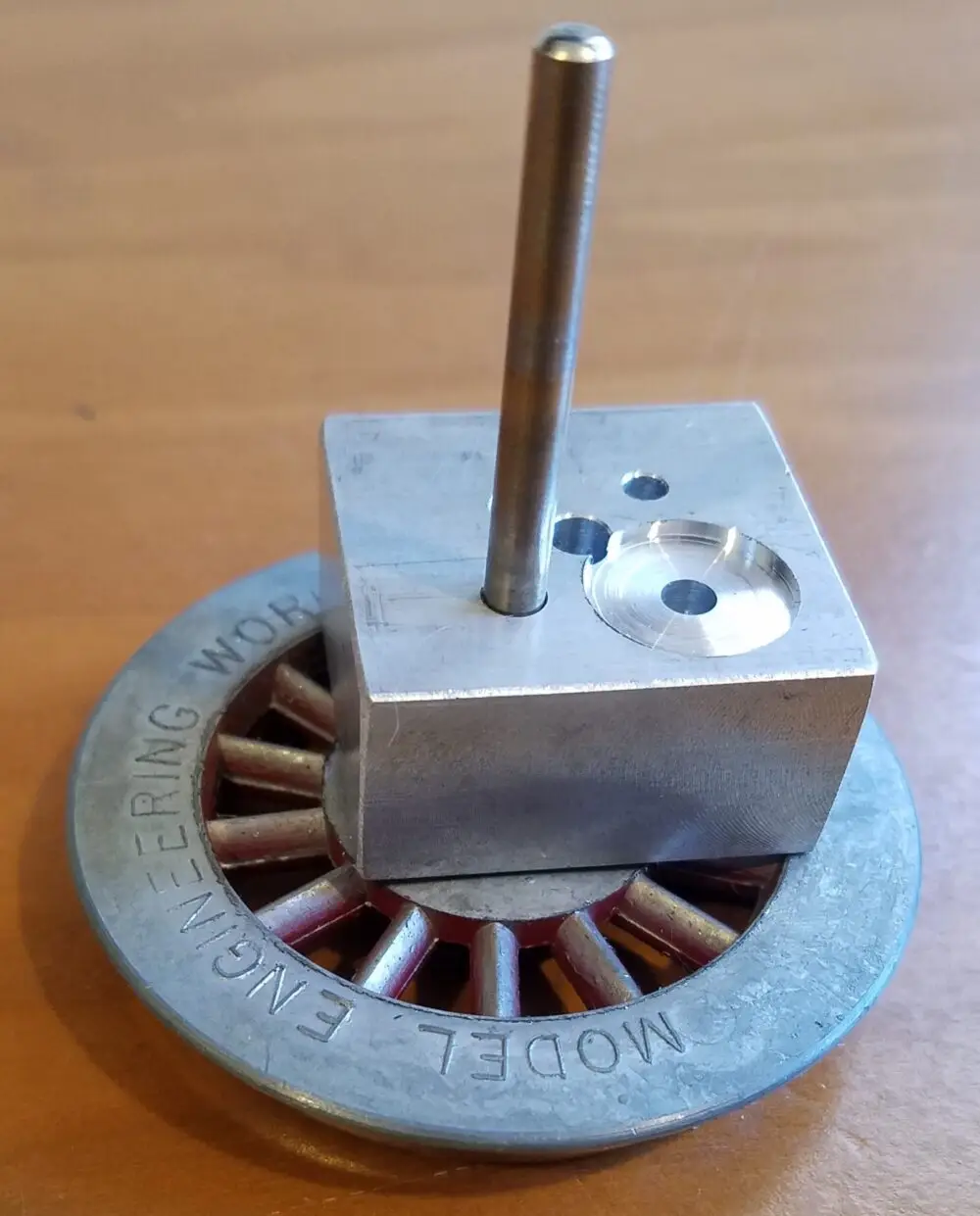

This block will keep the axle at 90degrees to the wheel when pressing them in. Design for standard Diameter axle w/ & w/o countersinks used by Lionel, American Flyer, & Marx’s Engines. In Standard , O & S Gauges. But can be used for others.

• Block sits flat on the back of the wheel to hold axle at 90 degrees when press into wheel.
• Some wheels will needs to be used with the Wheel cups or our Quartering cups to hold them flat.

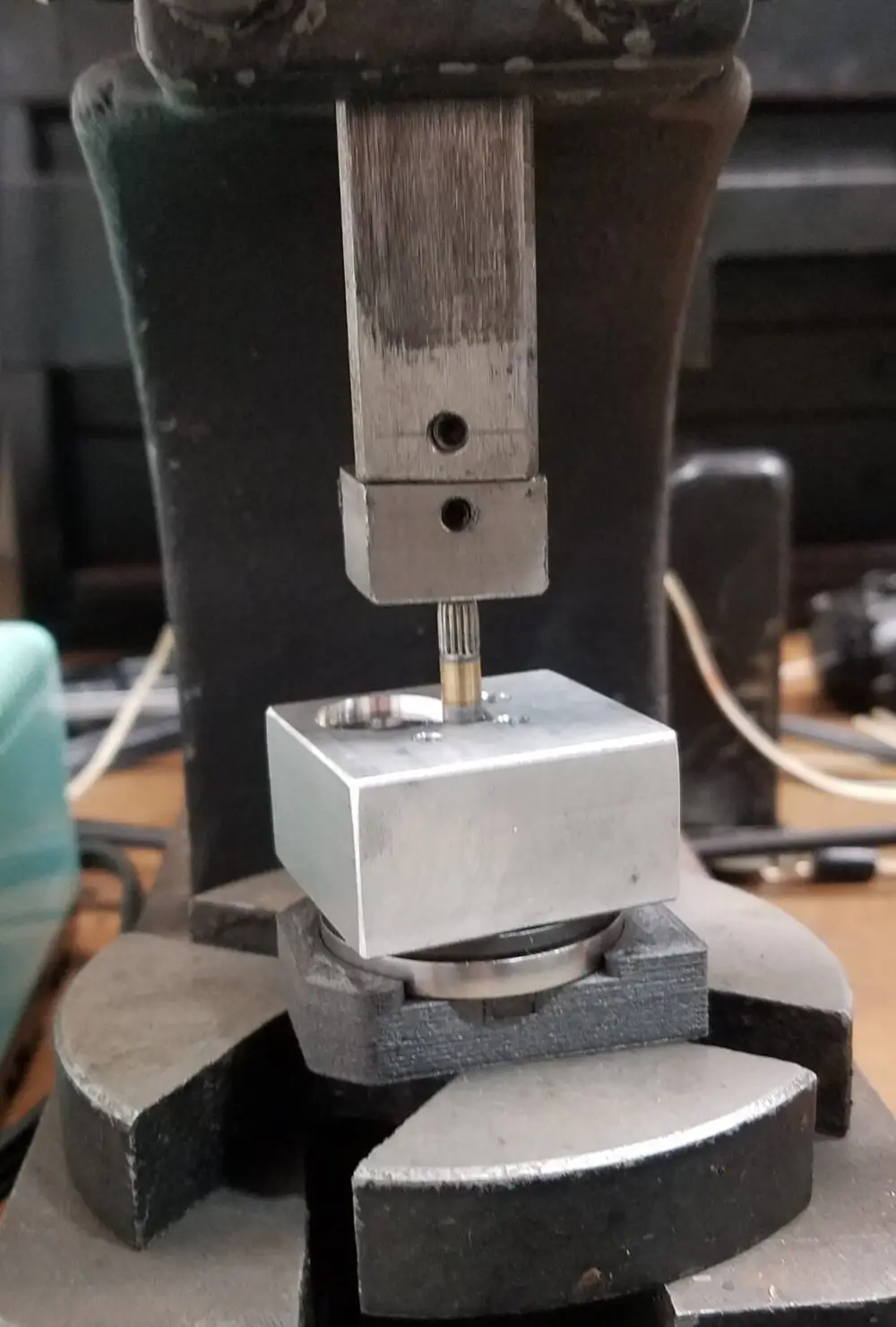

• Can be used in an Arbor Press.

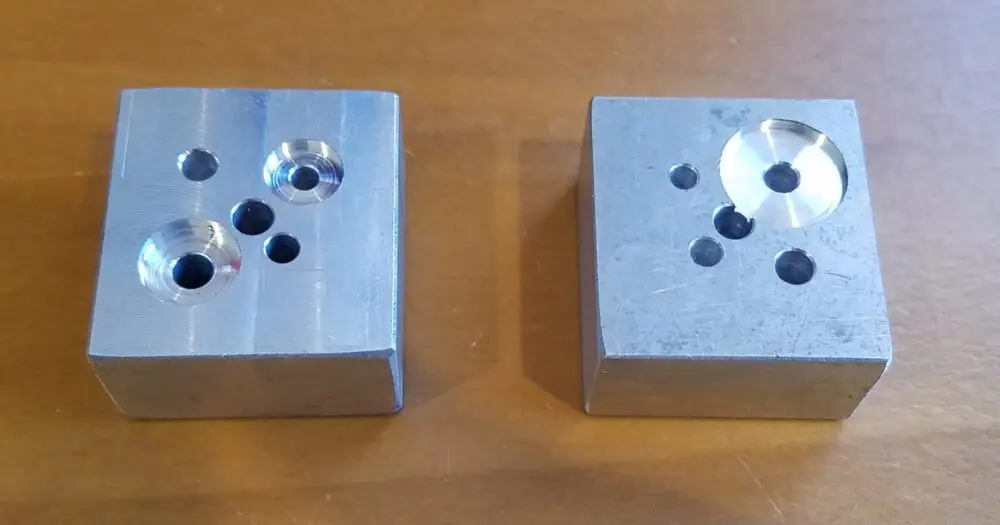

• The tool is machined out of solid 3/4″ Aluminum, Block is 2 sided.
• Side 1: 0.15″, 0.165″, & 0.19″ straight & 0.135″ & 0.18 with countersink.
• Side 2: 0.135″, 0.15″, 0.18″, & 0.19″ straight & 0.165 with countersink.

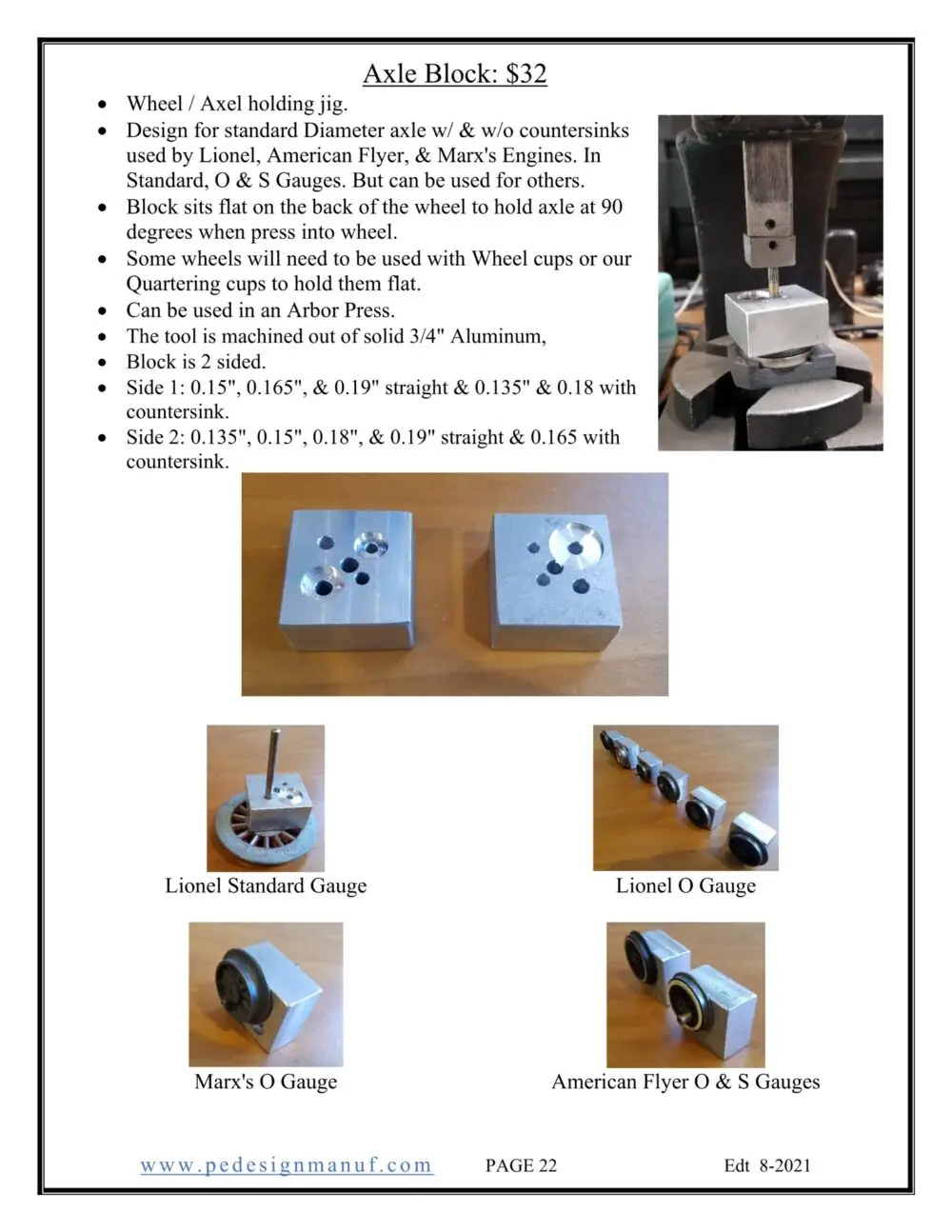

See photo’s above or Axle Block Tool’s webpage for detail description, sample use photos & direction. All tools made in small production runs in our home shop. Actual tool may vary some as we our always making improvements to the designs. If you don’t see the tool you need, ask it may be in the works & the next idea.
