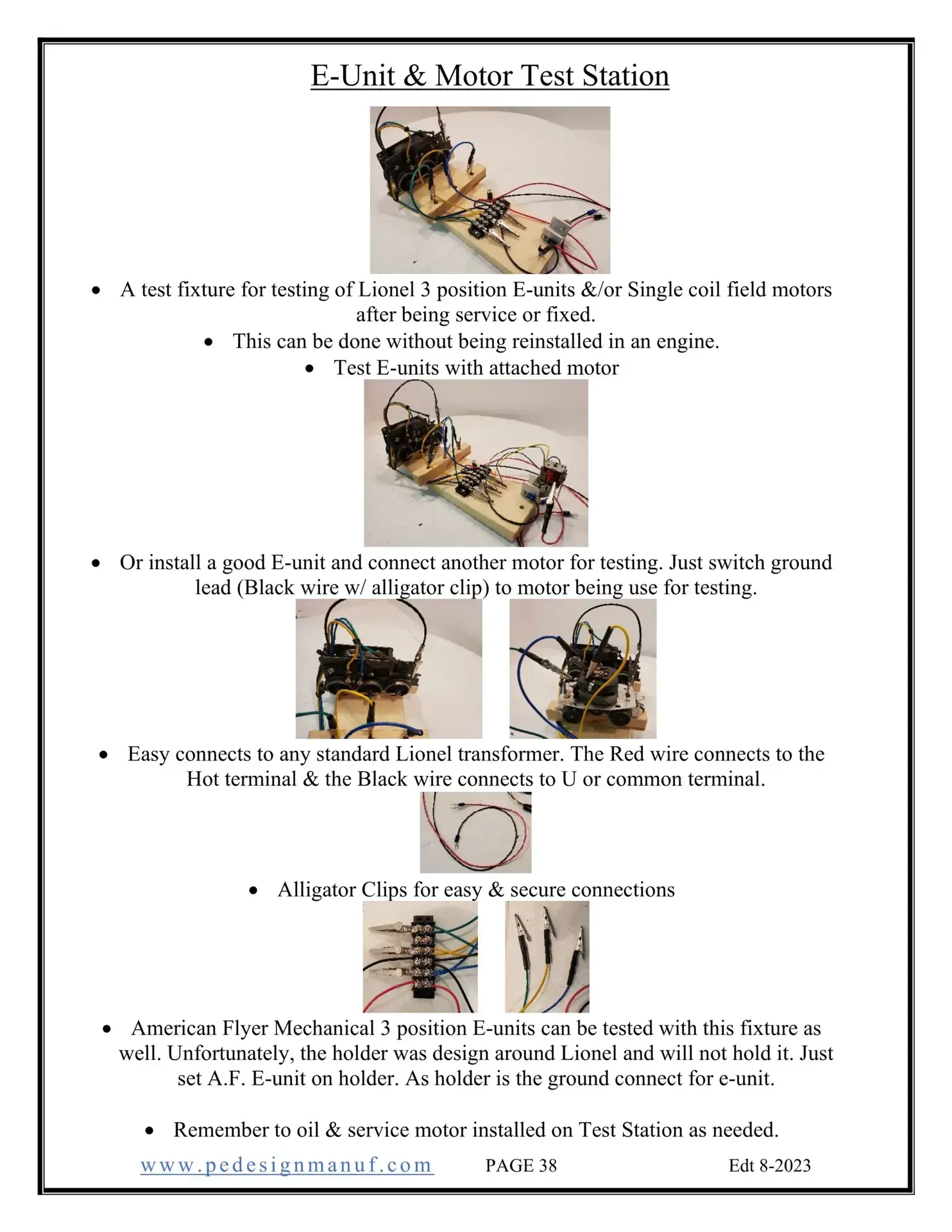

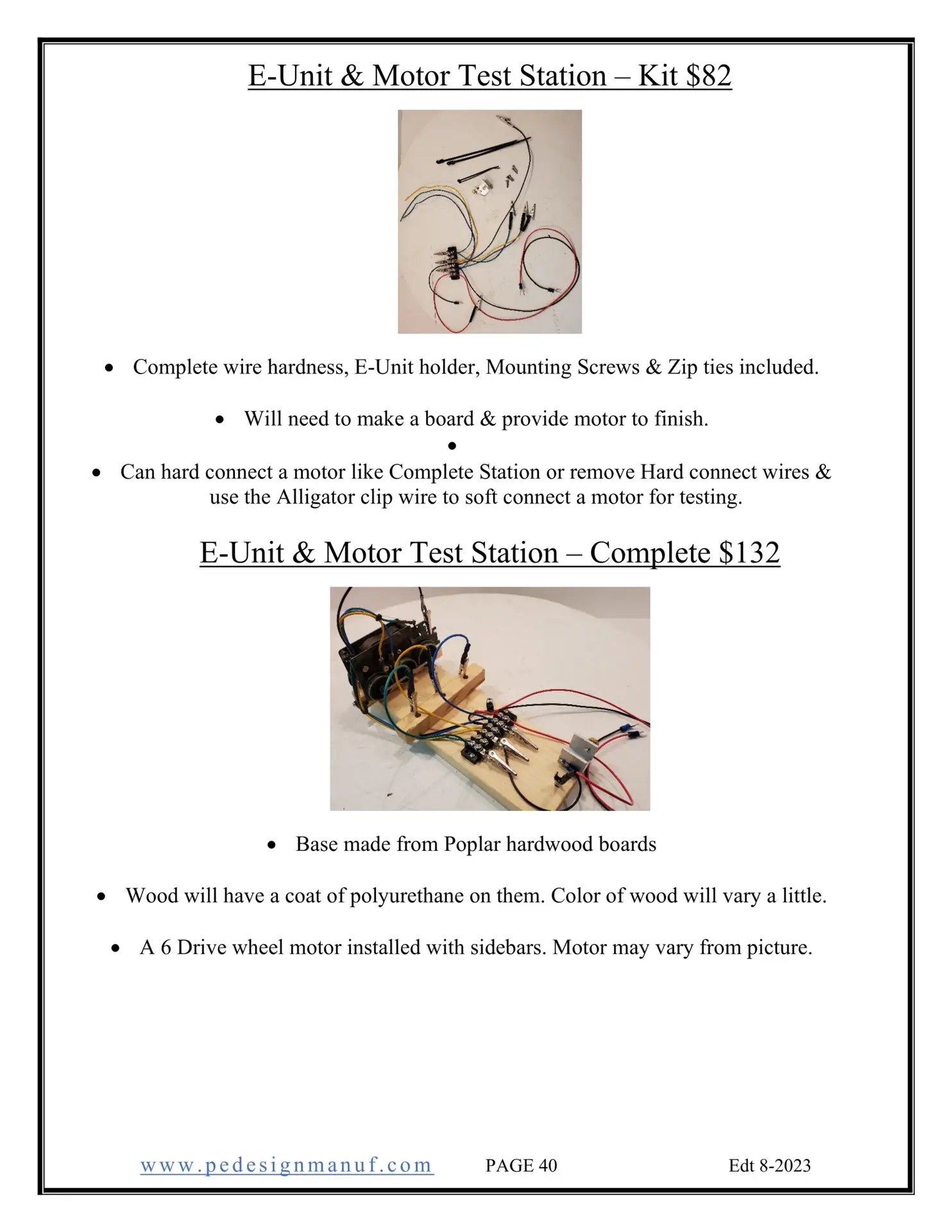

E-Unit & Motor Test Station – Kit

E-Unit & Motor Test Station – Kit

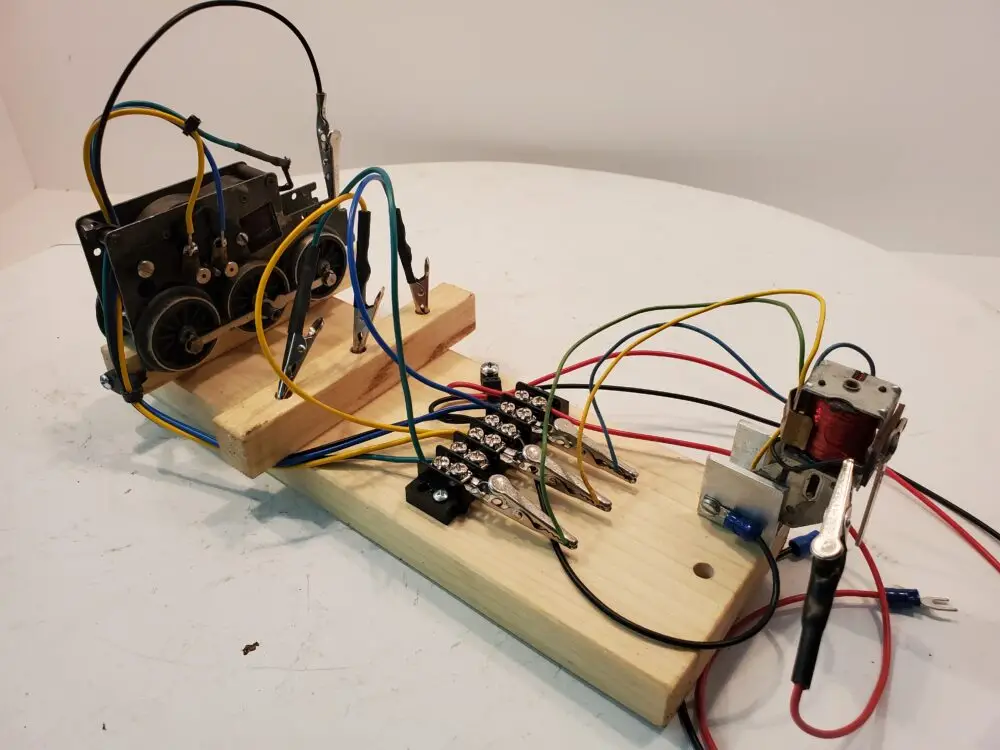

• A test fixture for testing of Lionel 3 position E-units &/or Single coil field motors after being service or fixed.
• This can be done without being reinstalled in an engine.

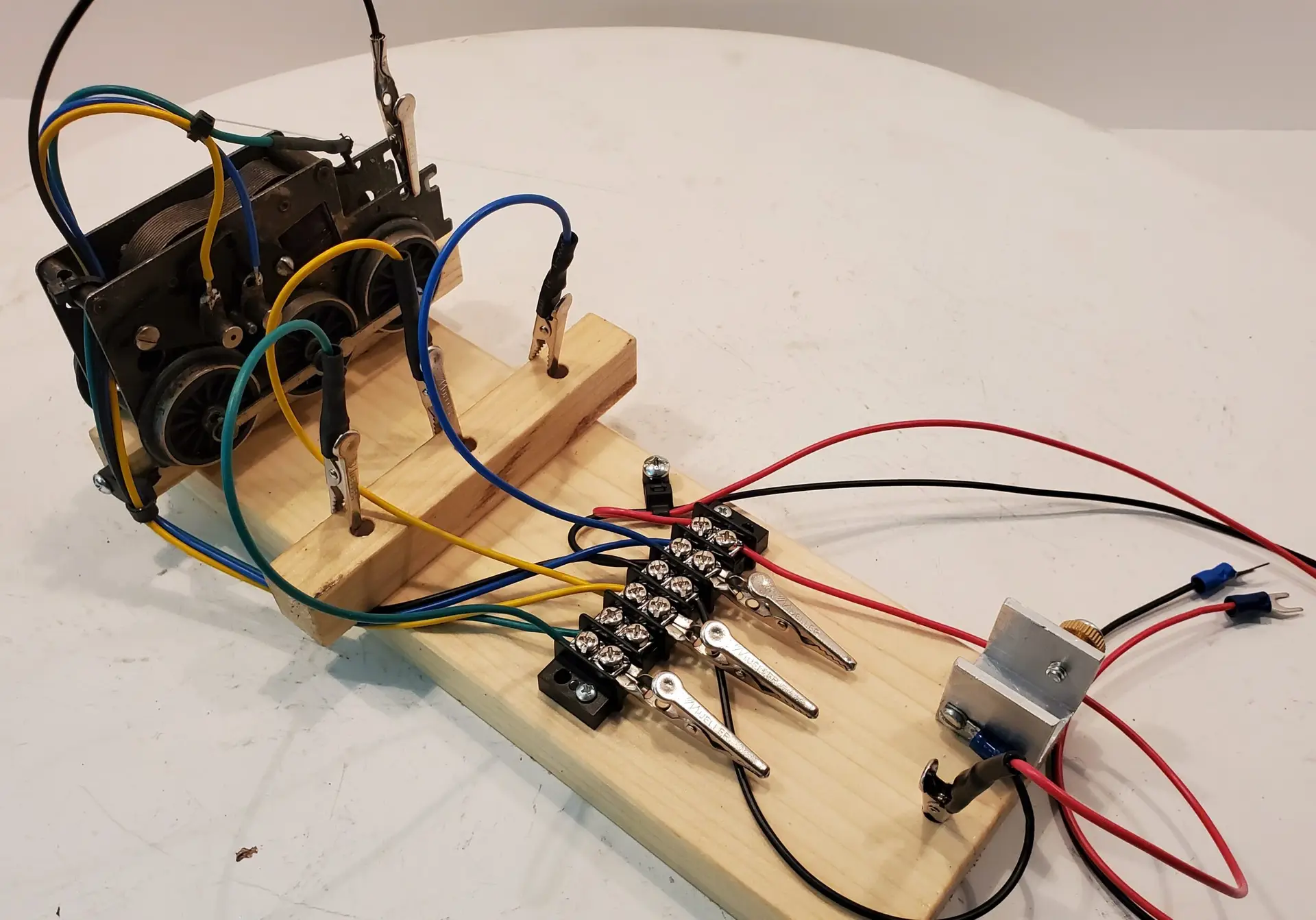

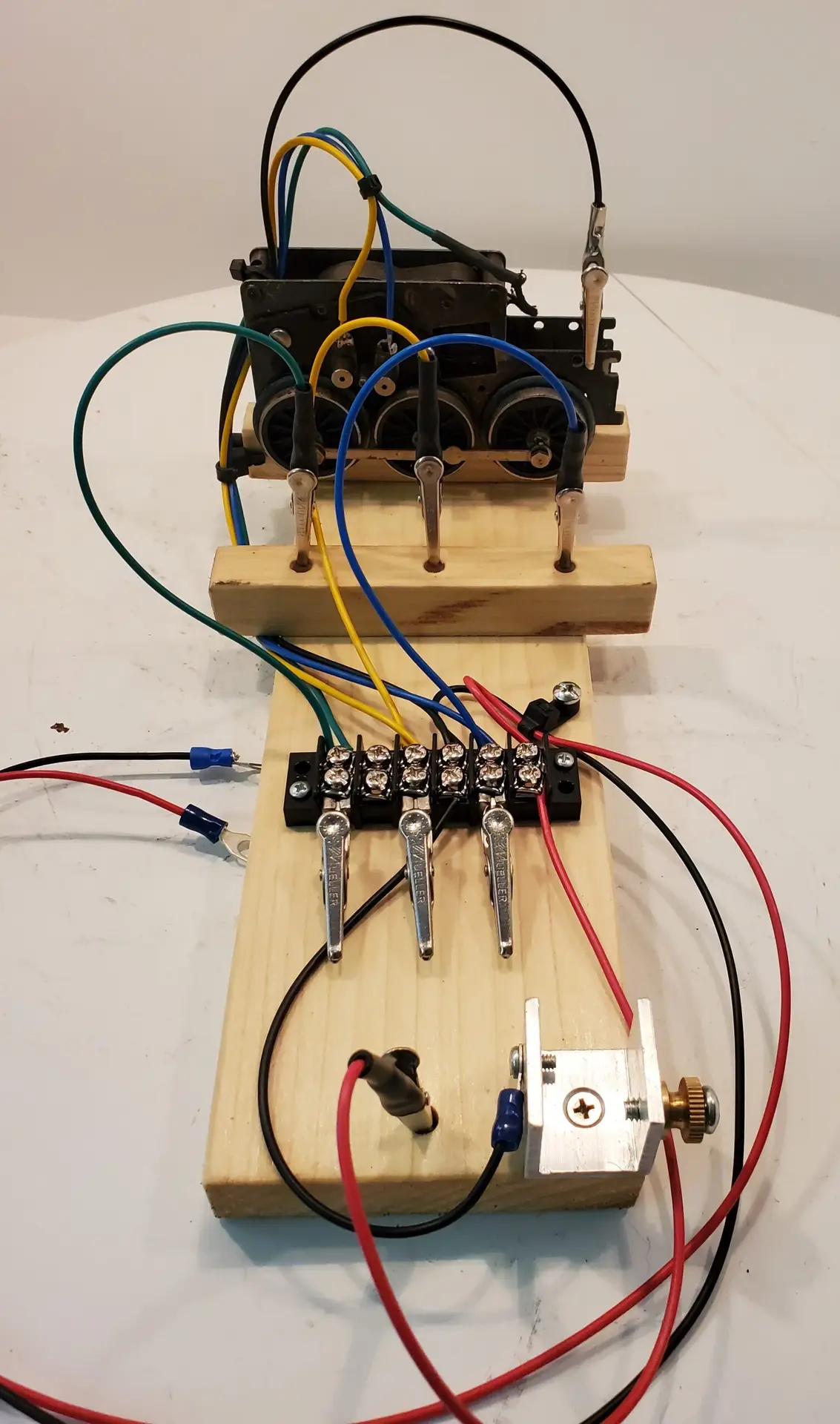

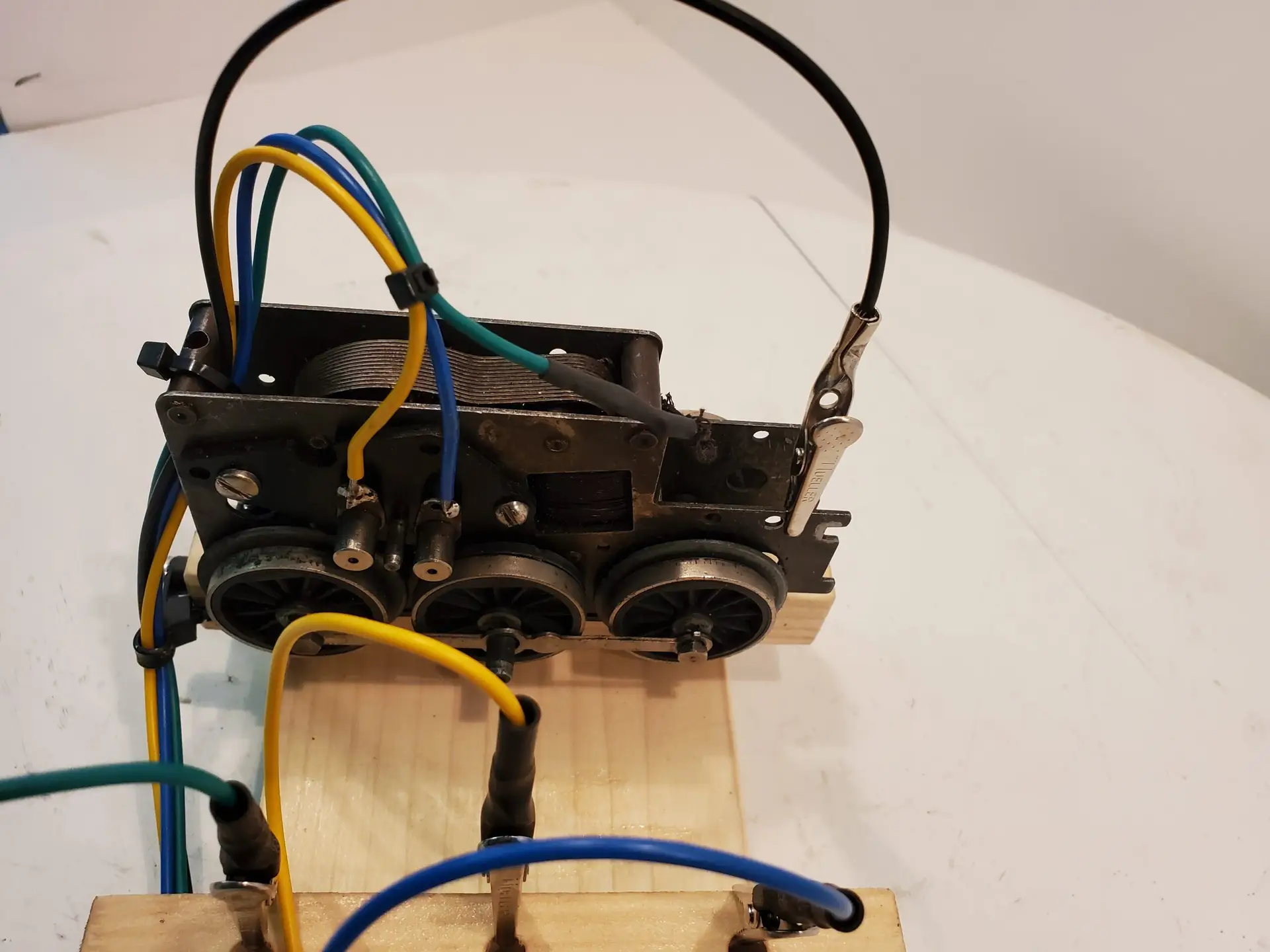

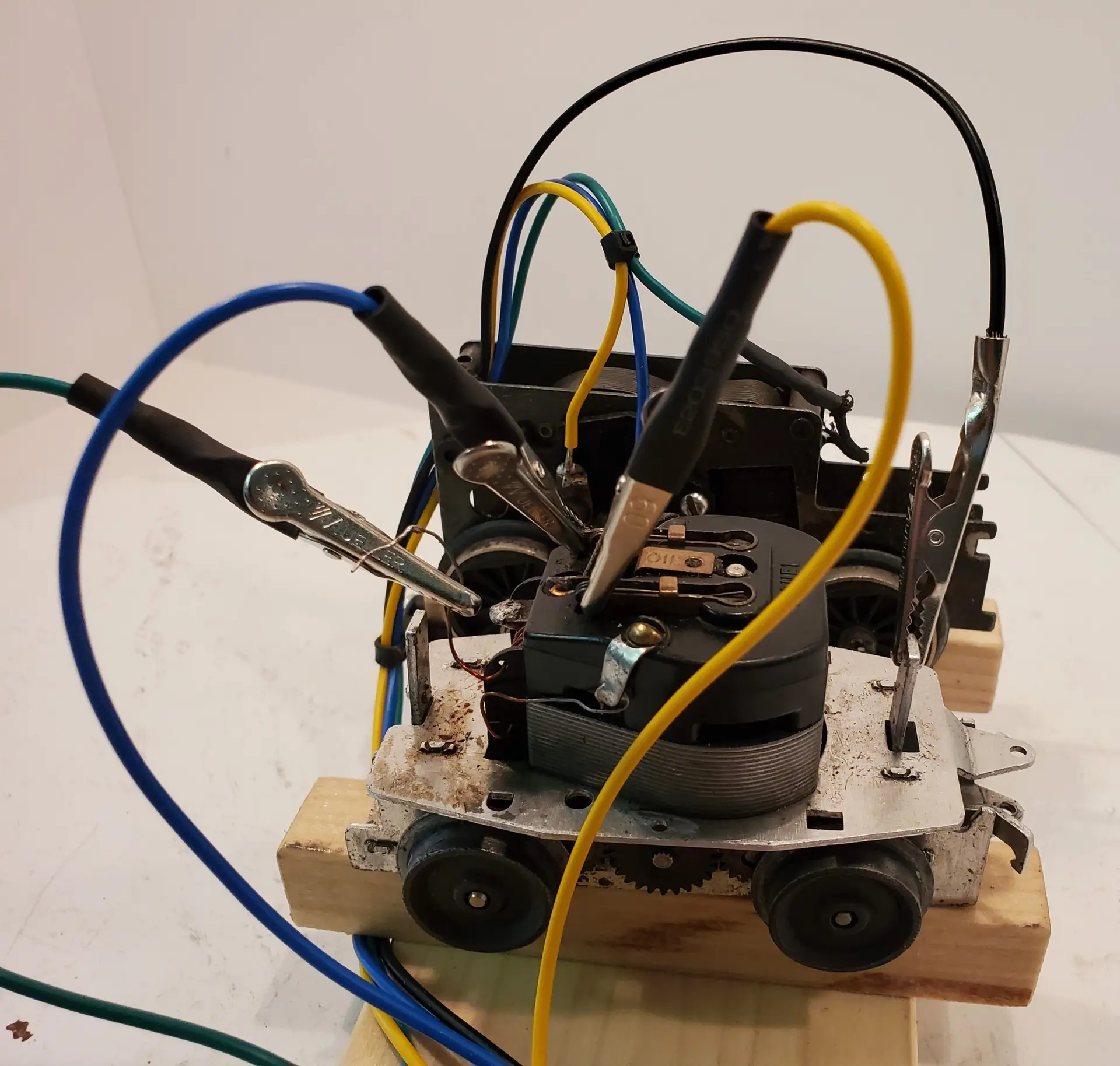

• Test E-units with attached motor
• Or install a good E-unit and connect another motor for testing. Just switch ground lead (Black wire w/ alligator clip) to motor being use for testing.

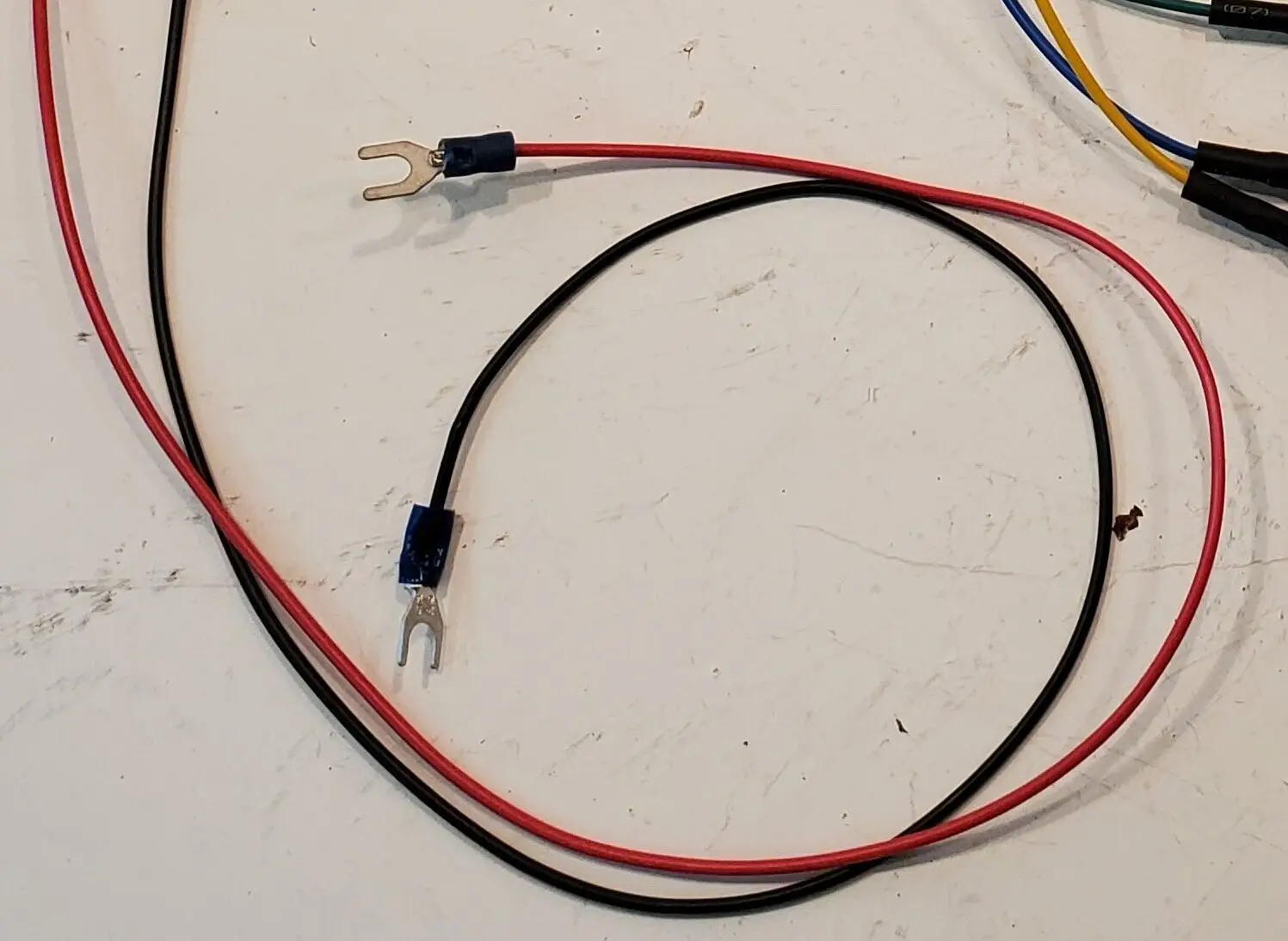

• Easy connects to any standard Lionel transformer. The Red wire connects to the Hot terminal & the Black wire connects to U or common terminal.

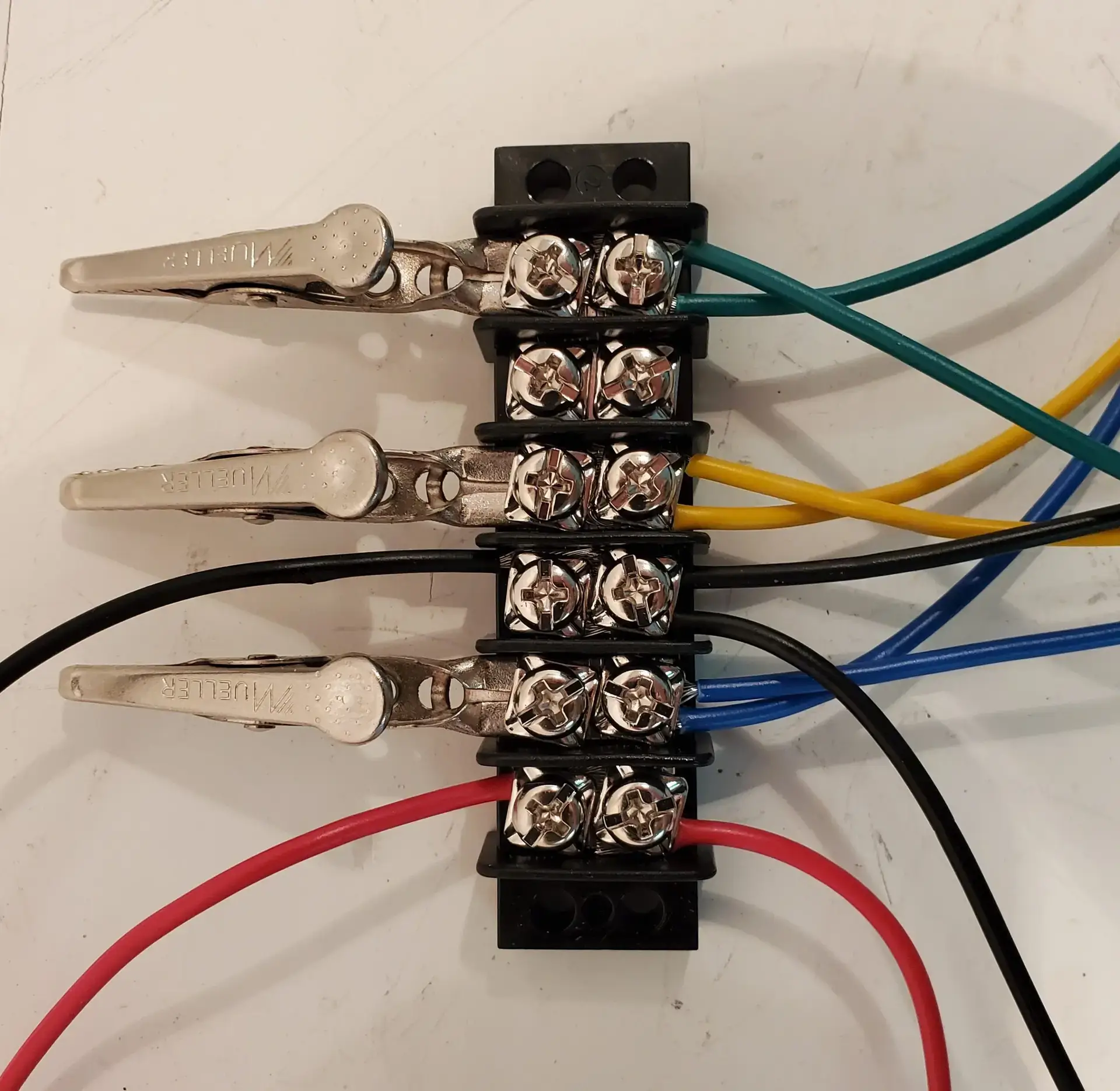

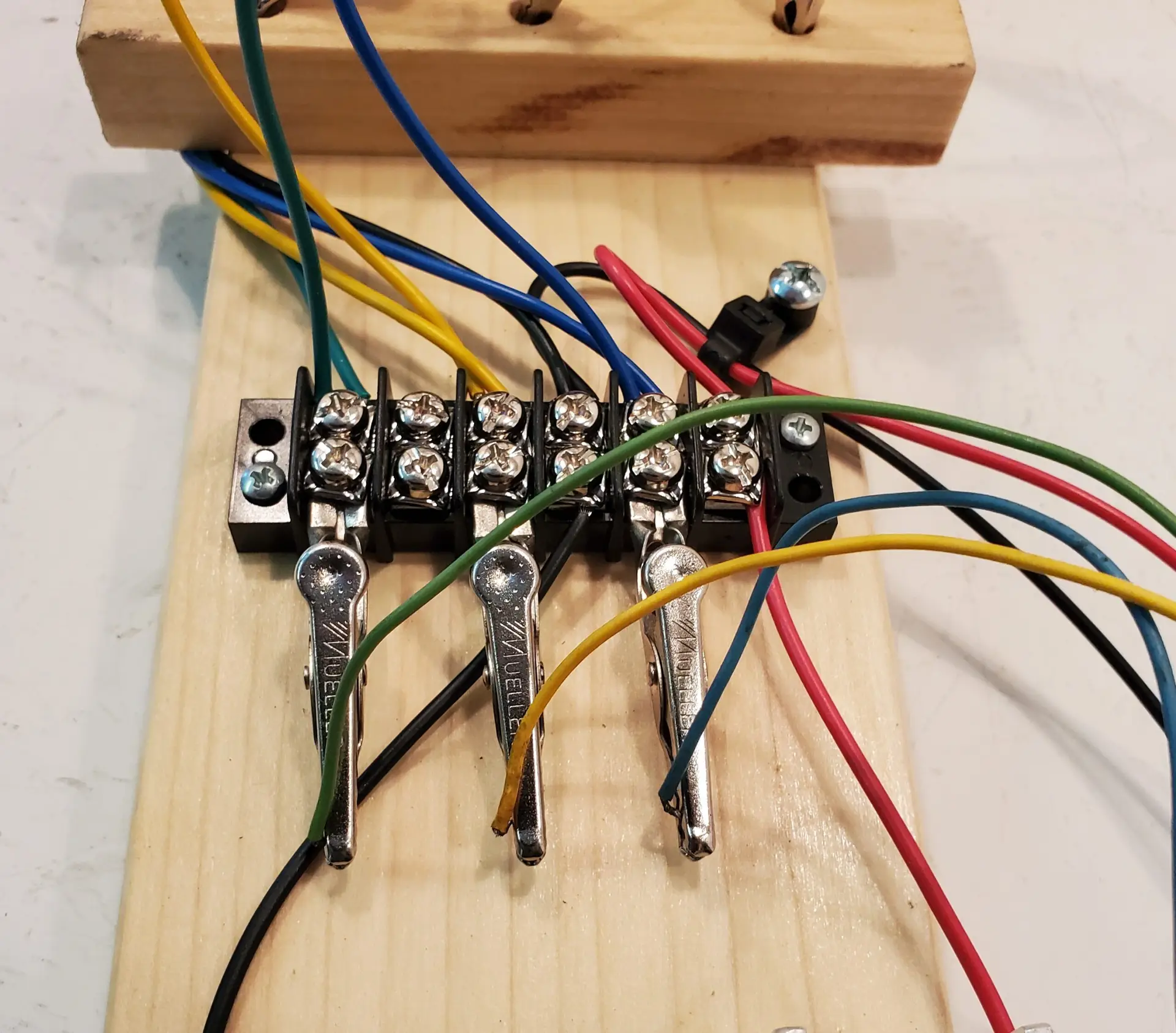

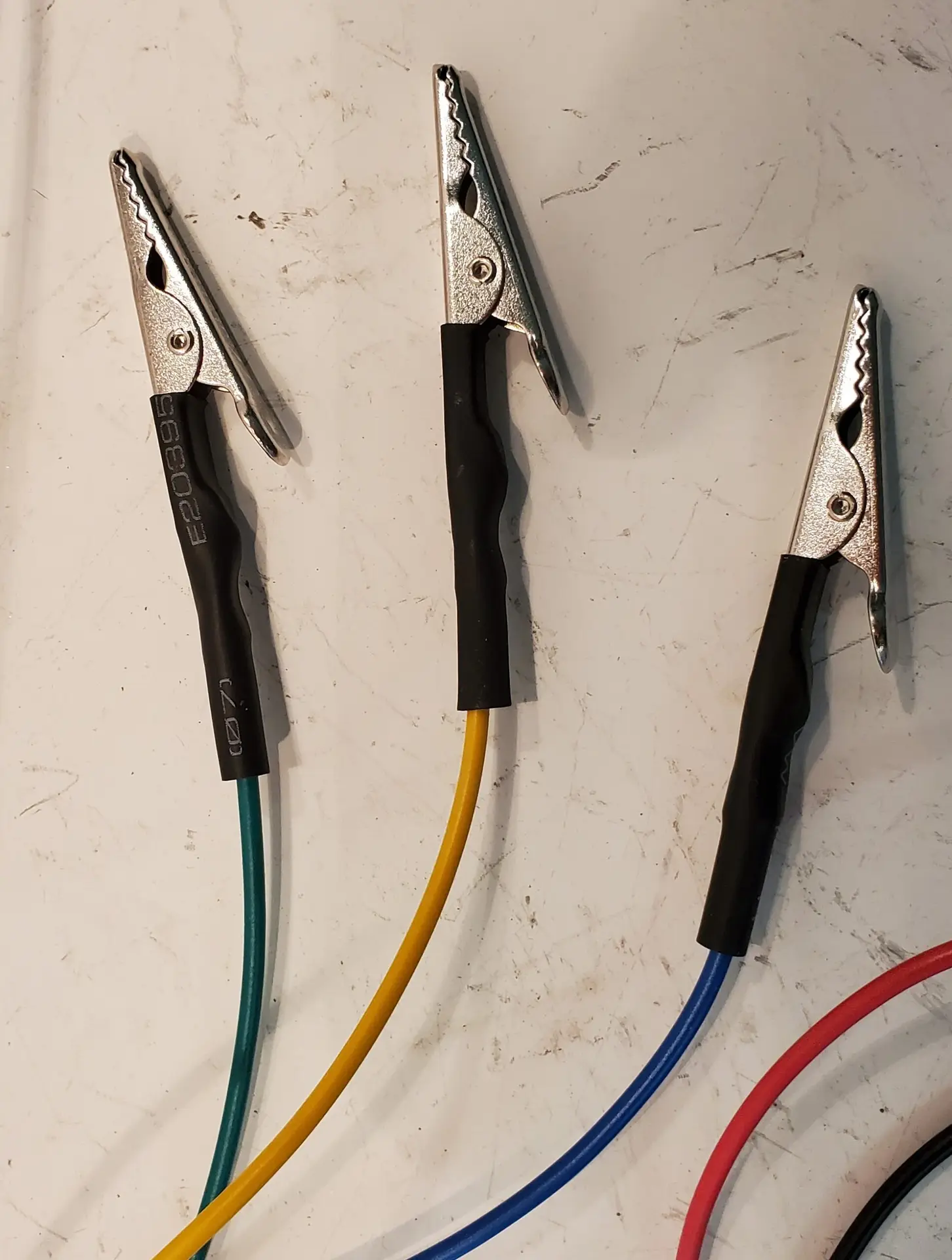

• Alligator Clips for easy & secure connections
• Will need to make base & provide motor to finish

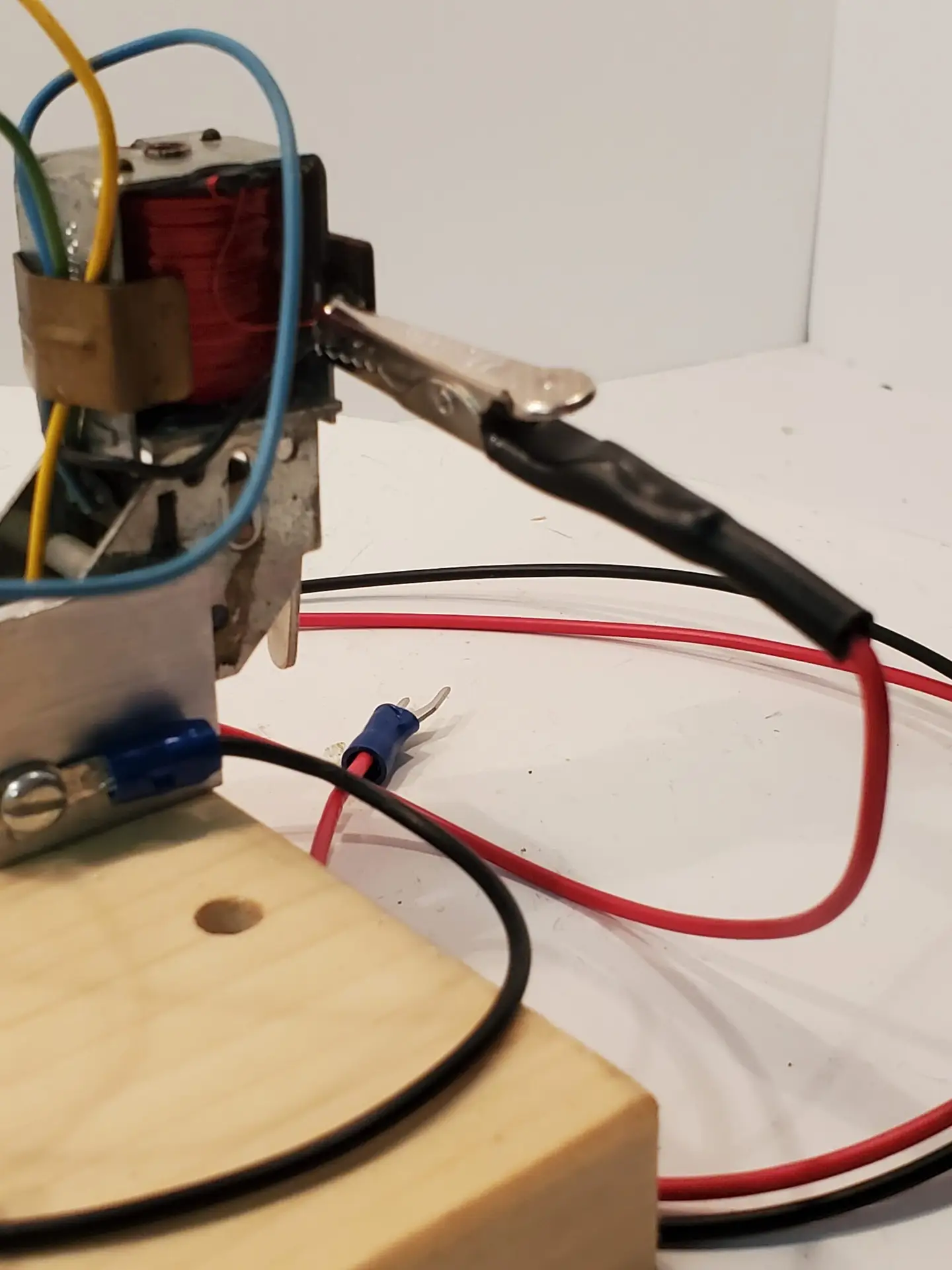

• American Flyer Mechanical 3 position E-units can be tested with this fixture as well. Unfortunately, the holder was design around Lionel and will not hold it. Just set A.F. E-unit on holder. As holder is the ground connect for e-unit.

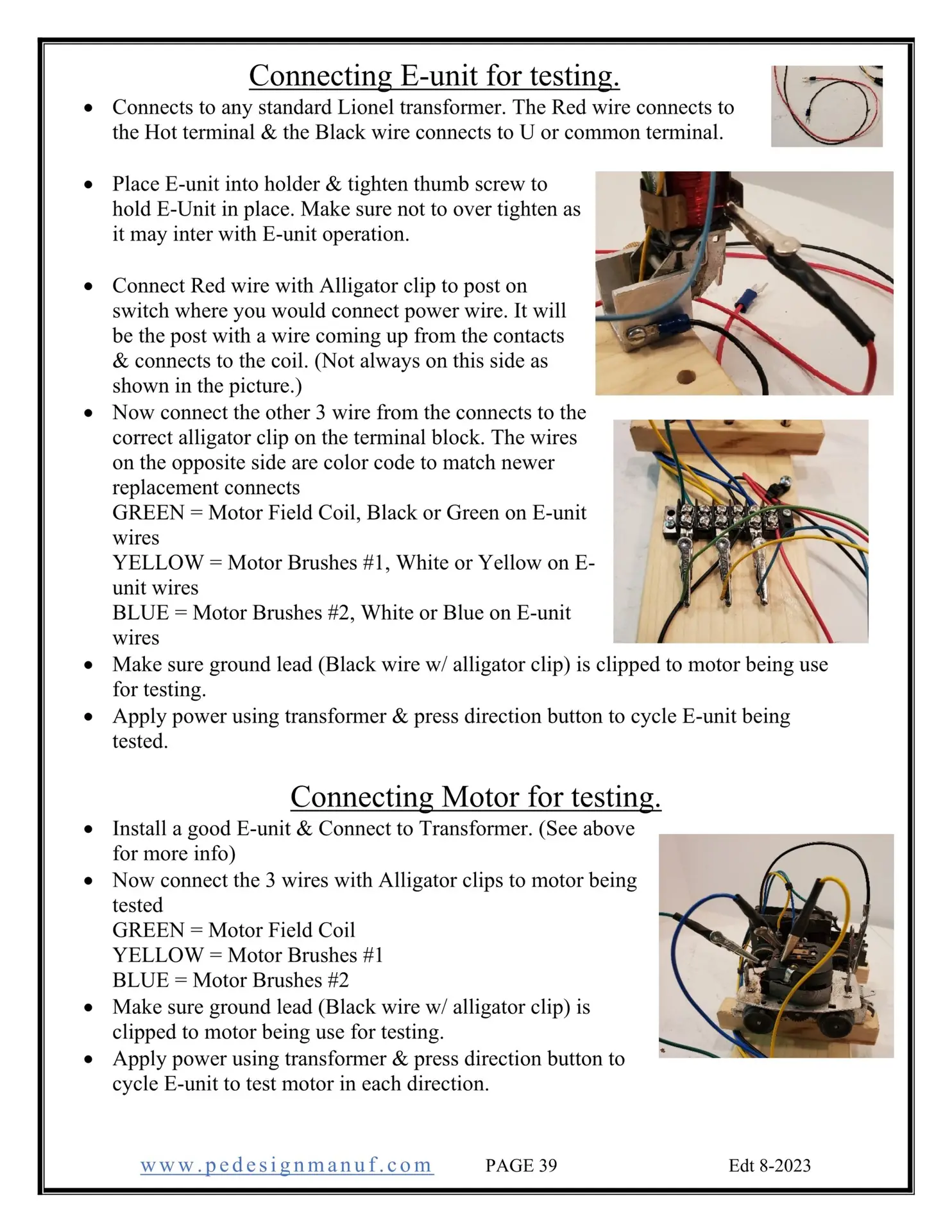

See photo’s above or E-Unit Tool’s webpage for detail description, sample use photos & direction. All tools made in small production runs in our home shop. Actual tool may vary some as we our always making improvements to the designs. If you don’t see the tool you need, ask it may be in the works & the next idea.
