CNC Wheel Cup – Current 18 sizes Comb

• This tool was designed to Align the wheels on Steam engines & Electric Engines.
• With our Slot & Indexing Screw system in the Wheel cups, this allows multiple different style wheel fit the same cup set.
• The tool is CNC machined out of solid 6061 aluminum blank
• Cups are the same but when you flip one cup it will correctly set the 87 degrees offset. They will set the left side to lead the right.
• If right side lead or custom sizes are needed, they will be available through or Custom Wheel Cup Program, Contact us for more information.
• Can be used in a standard Arbor Press or Machine Vise as is. But Screw on post can be added so they work on the Lionel or Hobby Horse type press.
• Wheel Diameter is engraved in front of cups.
• Slide bar screws only work if they are the standard ¼” hex head. Otherwise, you will need to use our “indexing Screws”.
• Some engines require only 2 cups, Others require 4 (2 for the outer wheels, 2 for the center wheels. Cups marked with the smaller Diameter will be for the center wheels.
• Non-Quartering cups have all same feature as Quartering cups except the Quartering slot.
• Designed for: Lionel, McCoy & American Flyer Pre & Post war
• Gauge Designed for: Standard, Wide, O & S gauges
• Model #: WC-18-COMB

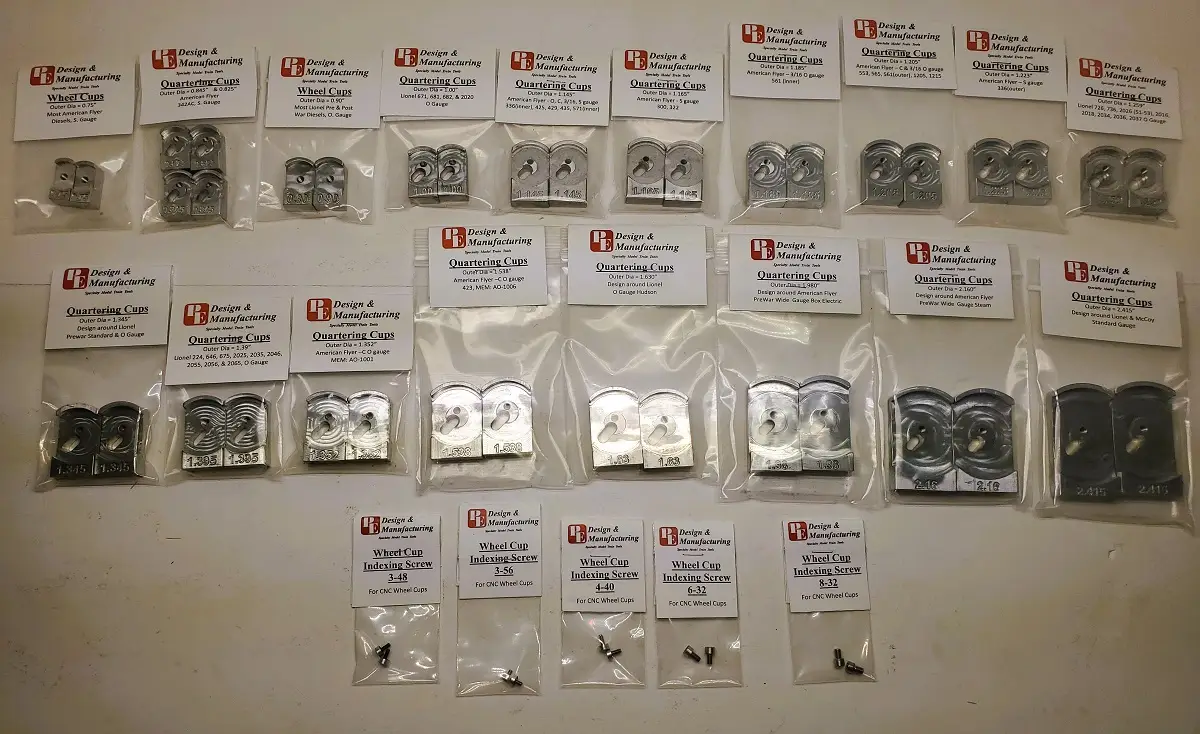

– Comb Kit Includes:

• 2.415″ Wheel Cup : WC-2.415-Q , ( Designed for most Lionel & McCoy Pre & Post-War Steam & Electric Engines, Standard Gauge)
• 2.16″ Wheel Cup : WC-2.160-Q , ( Designed for most American Flyer Chicago wide gauge Steam Engines)
• 1.98″ Wheel Cup : WC-1.980-Q , ( Designed for most American Flyer Chicago wide gauge Electric Engines)
• 1.63″ Wheel Cup : WC-1.630-Q , ( Designed for Lionel Hudson & American Flyer Chicago Hudson O gauge )

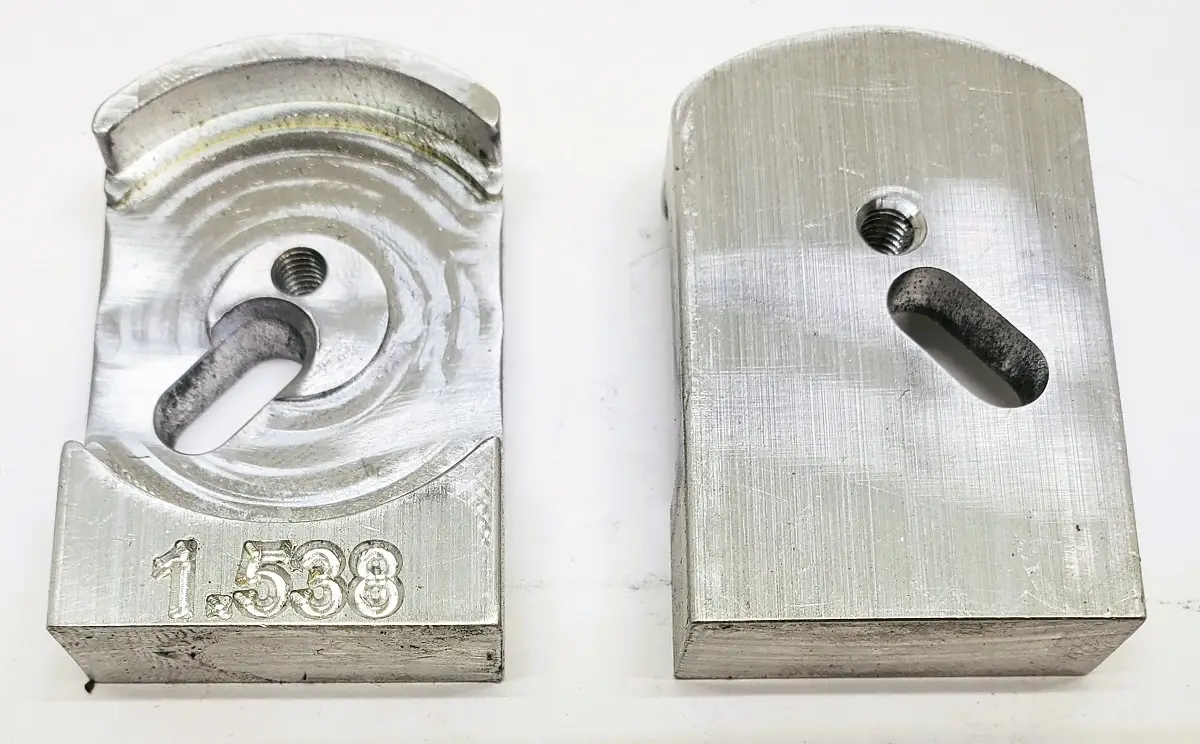

• 1.538″ Wheel Cup : WC-1.538-Q , ( Designed for American Flyer Chicago O gauge)
• 1.395″ Wheel Cup : WC-1.395-Q , ( Designed for Lionel 224, 646, 675, 2025, 2035, 20246, 2055, 2056, 2065)
• 1.352″ Wheel Cup : WC-1.352-Q , ( Designed for American Flyer Chicago O gauge)
• 1.345″ Wheel Cup : WC-1.345-Q , ( Designed for Lionel & McCoy Pre & Post-War Steam & Electric Engines, Standard & O Gauge)

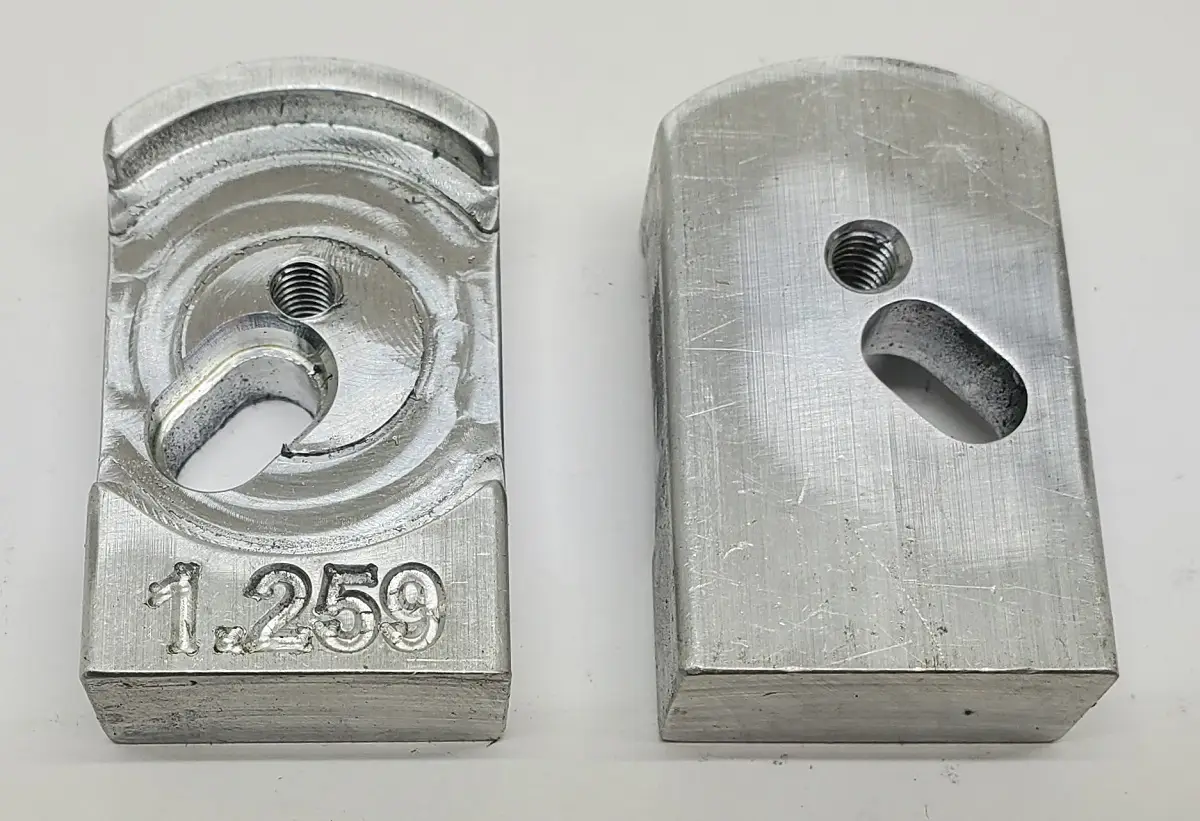

• 1.259″ Wheel Cup : WC-1.259-Q , ( Designed for Lionel 726, 736, 2026, 2016, 2018, 2034, 2036, 2037)
• 1.223″ Wheel Cup : WC-1.223-Q , ( Designed for American Flyer S gauge)
• 1.205″ Wheel Cup : WC-1.205-Q , ( Designed for American Flyer Chicago O gauge & 3/16th O gauge)
• 1.185″ Wheel Cup : WC-1.185-Q , ( Designed for American Flyer 3/16th O gauge)
• 1.165″ Wheel Cup : WC-1.165-Q , ( Designed for American Flyer S gauge)
• 1.145″ Wheel Cup : WC-1.145-Q , ( Designed for American Flyer Chicago O gauge, 3/16th O gauge & S gauge)
• 1.0″ Wheel Cup : WC-1.000-Q , ( Designed for Lionel Turbines 671, 681, 682, 2020)
• 0.9″ Wheel Cup : WC-0.900-Q , ( Designed for most Lionel O gauge Diesels)
• 0.825/0.845″ Wheel Cup : WC-0.825-0.845-Q , ( Designed for American Flyer S gauge 342AC)
• 0.75″ Wheel Cup : WC-0.750-Q , ( Designed for most American Flyer S gauge Diesels)
• Indexing Screw with a 6-32 thread : IS-6-32
• Indexing Screw with a 8-32 thread : IS-8-32
• Indexing Screw with a 3-48 thread : IS-3-48
• Indexing Screw with a 4-40 thread : IS-4-40
• Indexing Screw with a 3-56 thread : IS-3-56
