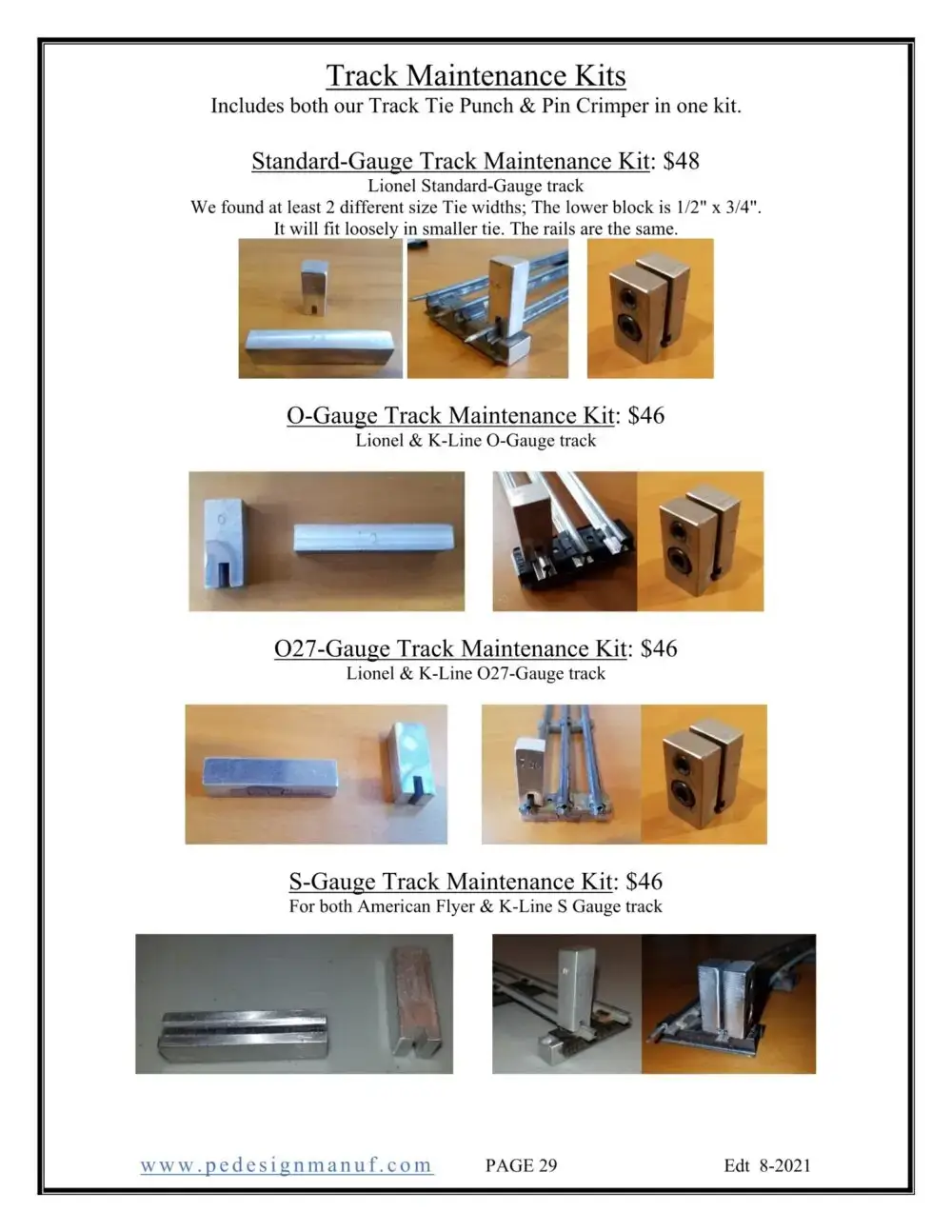

Kit includes both O-Gauge Track Pin Crimper & Standard-Gauge Track Tie Punch
O-Gauge Track Pin Crimper
– Lionel & K-Line Standard, O, & O27 Gauge Tubular track Also Lionel O Fast Track 2 edges only
– Crimps track into connector pins with 4 edges parallel to the pin & rails on tubular track, 2 edges on Fast Track for better electrical connection
– With how it crimps the track you will not have any bump on the top or sides of the rails
– Tighten loose Track pins for better conductivity but leave then loose enough to be taken apart.
– We recommend that the pin is in the rails before using this crimper. Without pin in the track you can easy over crimp the rails.
– Can be use on track that is mounted down on a layout.
– We know their are a few pier version of this tool. But the screw acts like a gear reduction and makes it very easy to put a lot of force on the rails so it bits into the pin.
– This tool in NOT meant to repair the rails by fixing the overall shape back to ordinal but can help it.
– You will need to adjust the top set screw for the track types. You want the jaws to remain parallel with each other when crimping.
– requires 1/8″ & 5/32″ hex wrench
– Will not work on Gargraves/Ross O track. See the S Gauge Track Pin Crimper
Standard-Gauge Track Tie Punch
– Sized for Lionel & K-Line Standard-Gauge track.
– Relocate Tie when cutting & shortening track.
– Tight loose Track Tie on old track.
– Tap end of punch with a hammer to tighten Ties.
– Can be use to punch flat the screw holes in the ties over tightened.

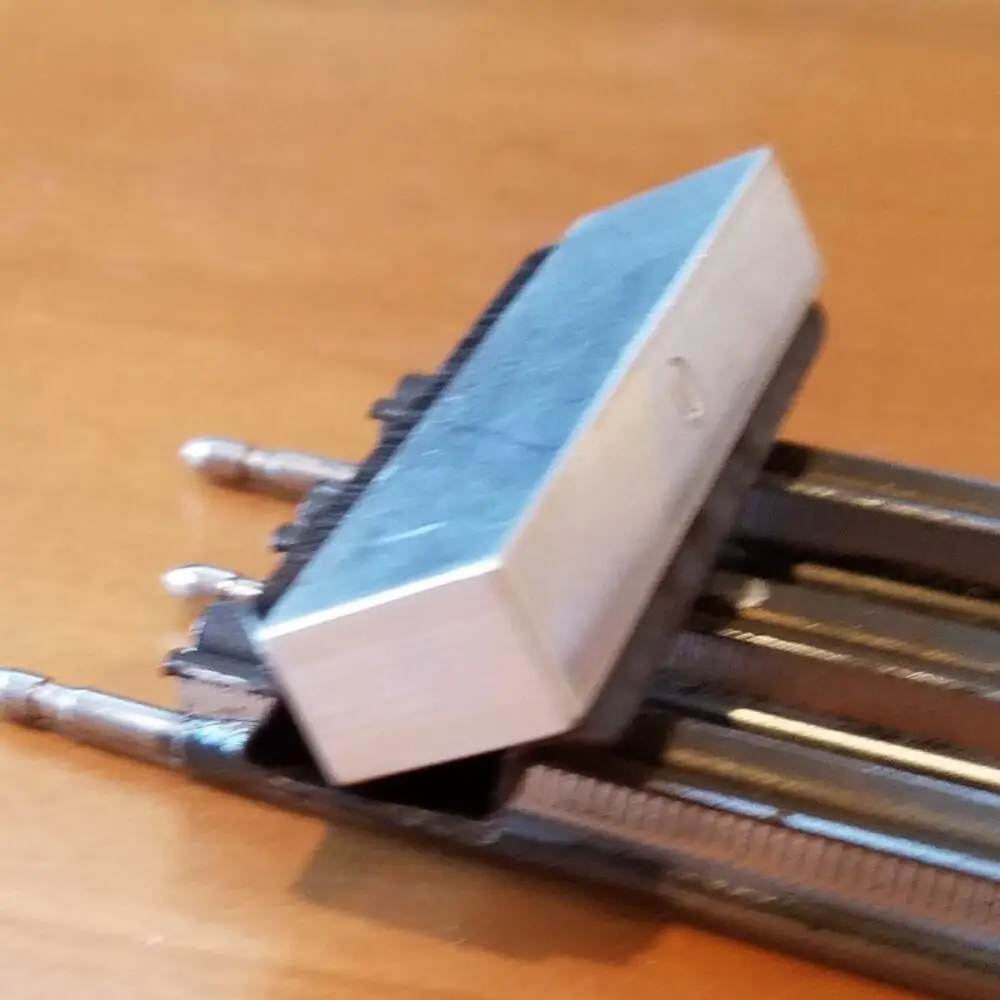

– Also as a jig to straighten bent ties.

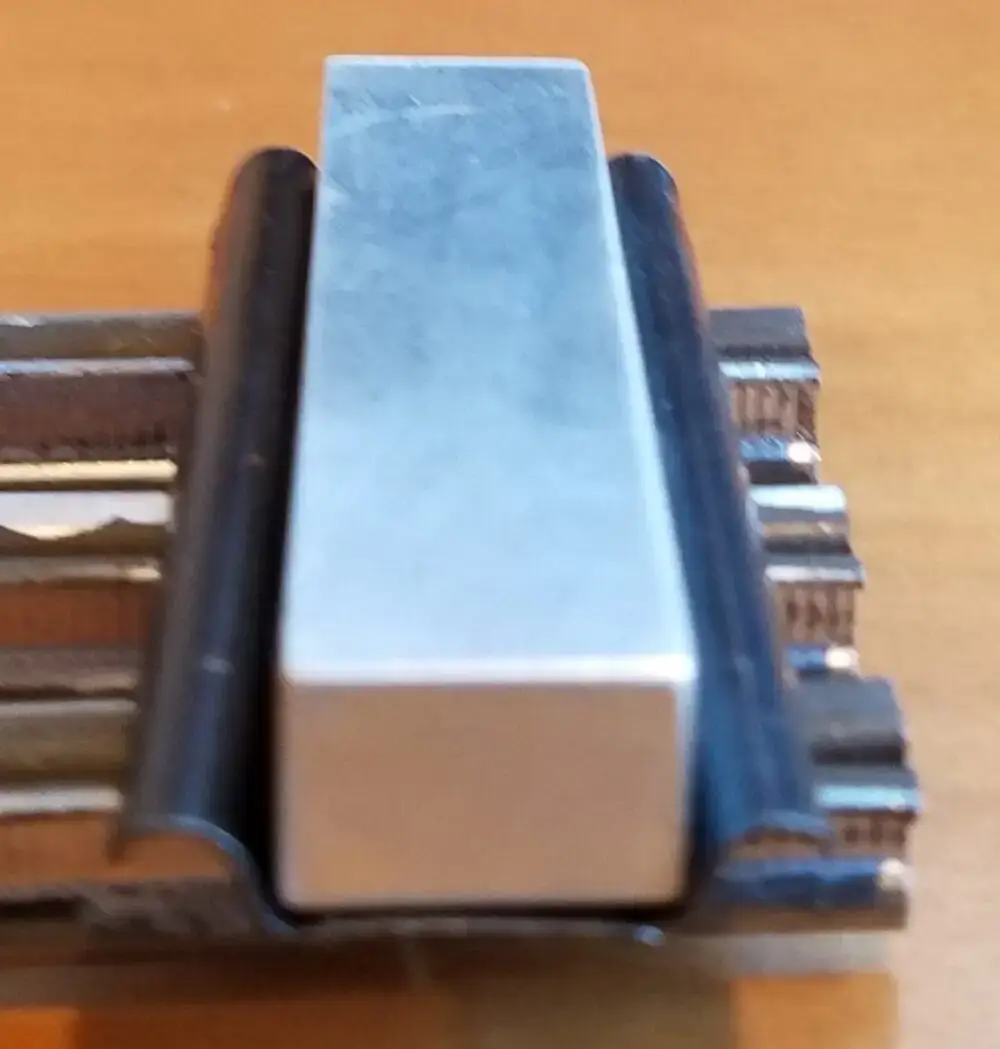

– Can be fixed by flipping the track over and tapping the lower block to spread the side of the tie or for flatting the hole after being over tightened. Then use channel locks or a vice to close up the side to the lower block.
– Machined from solid Aluminum.
See photo’s above or Tool’s webpage for detail description, sample use photos & direction.All tools made in small production runs in our home shop. Actual tool may vary some as we our always making improvements to the designs.If you don’t see the tool you need, ask it may be in the works & the next idea.
