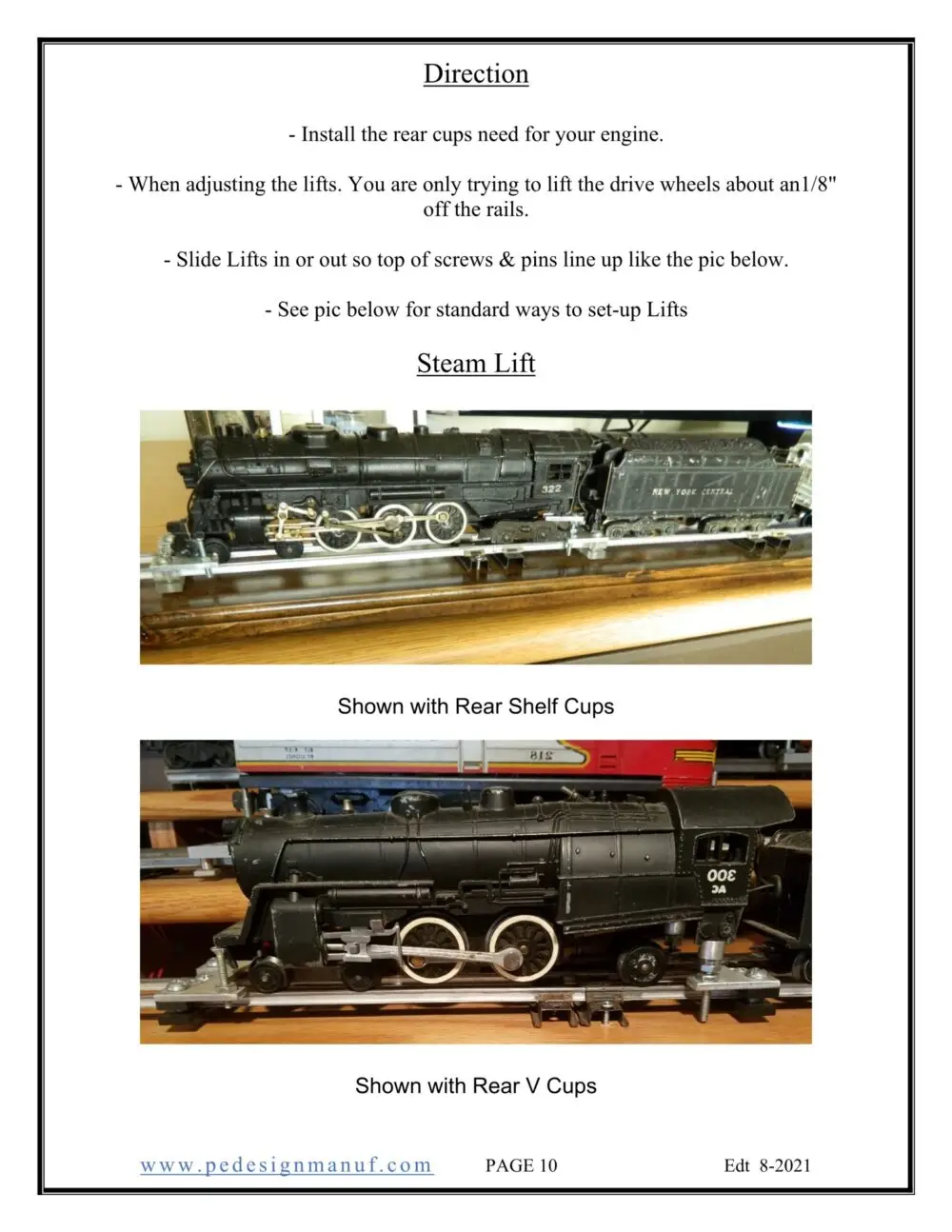

Download Direction sheet here:

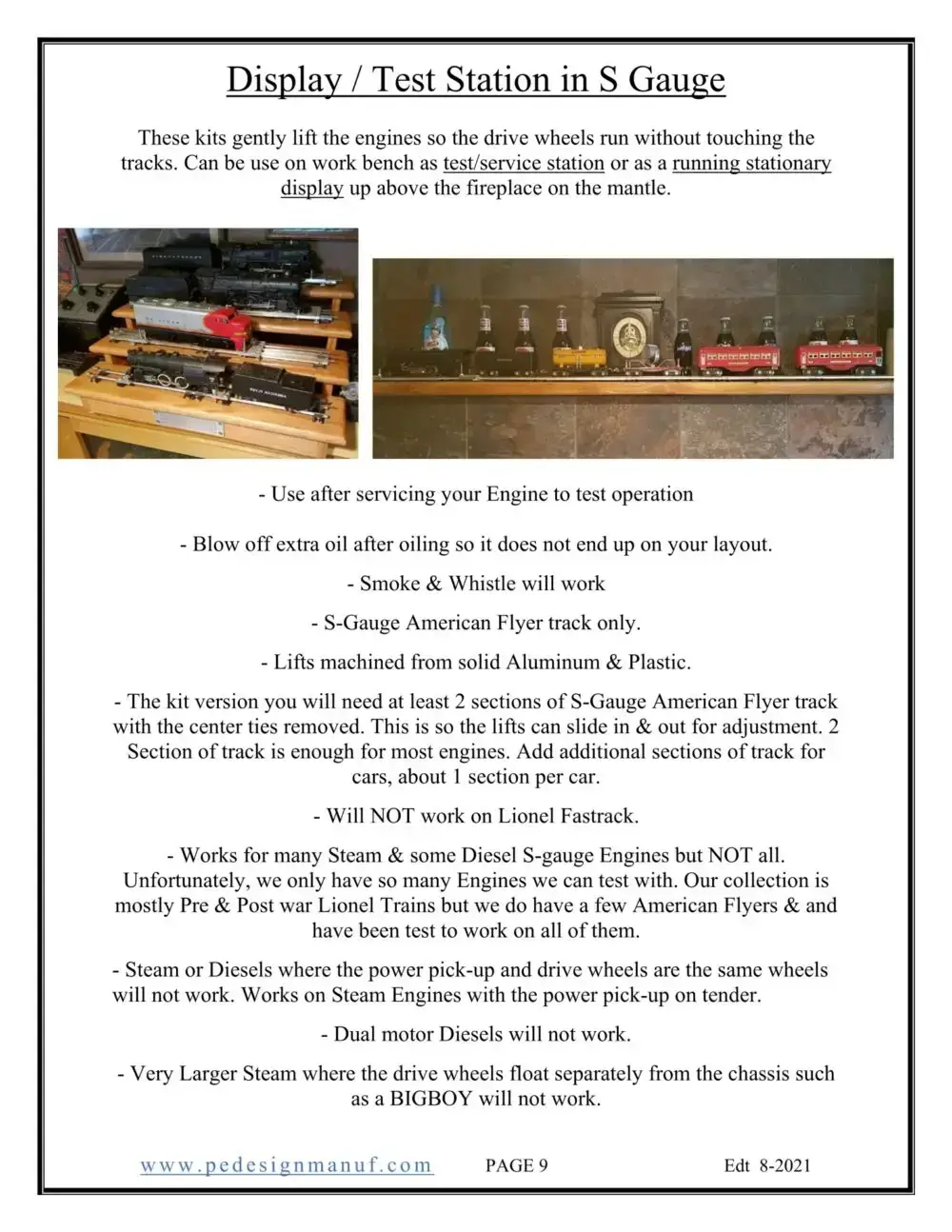

DIRECTION-DISPLAY TEST STATION – S GAUGE

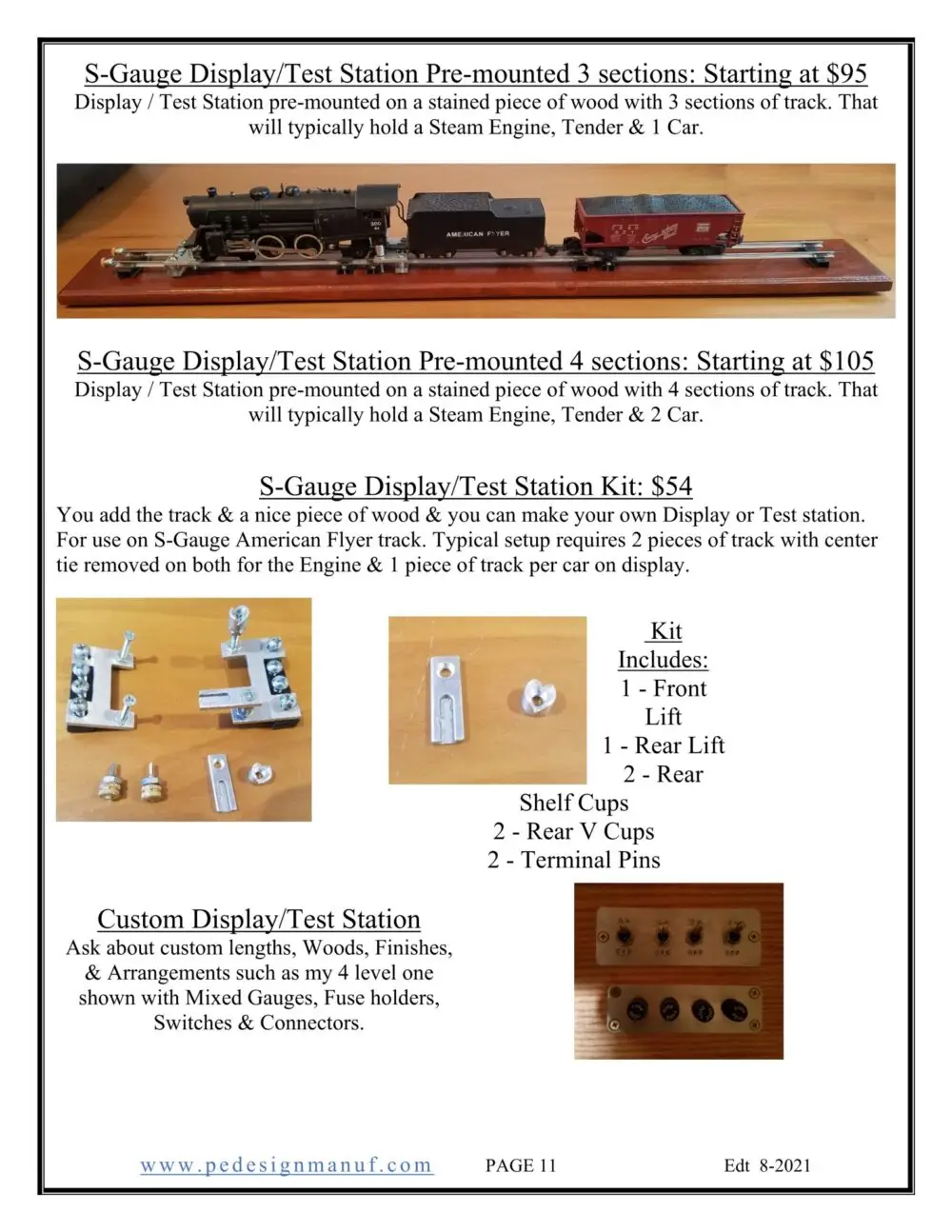

S-Gauge Display / Test Station Kit.

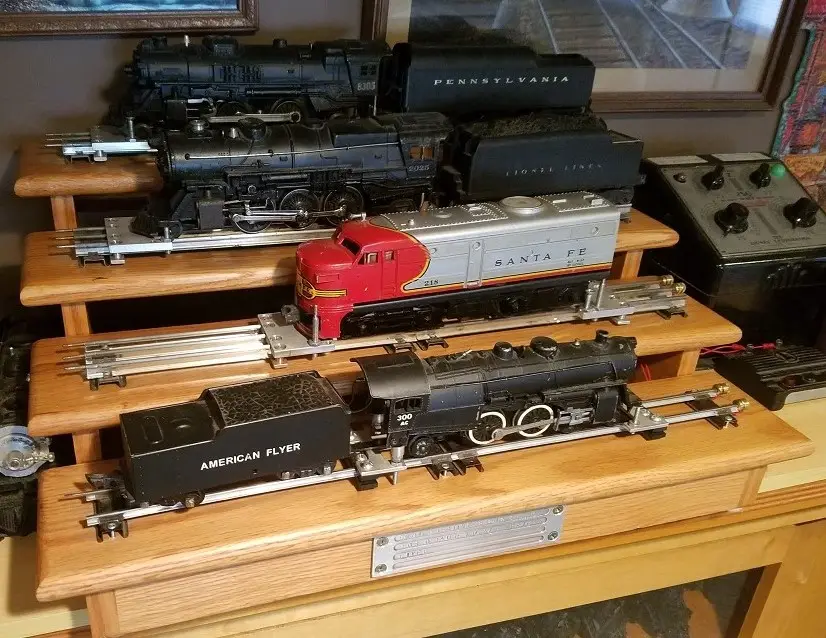

These kits gently lift the engines so the drive wheels run without touching the tracks. Can be use on work bench as test/service station or as a running stationary display up above the fireplace on the mantle.
– Use after servicing your Engine to test operation.
– Blow off extra oil after oiling so it does not end up on your layout.
– Smoke, Whistle & Rail sounds will work
– Dual motor Diesels or Diesels where the power pick-up and drive wheels are the same wheels will work but may require a jumper to the chassis ground.
– S-Gauge American Flyer or K-Line track only.

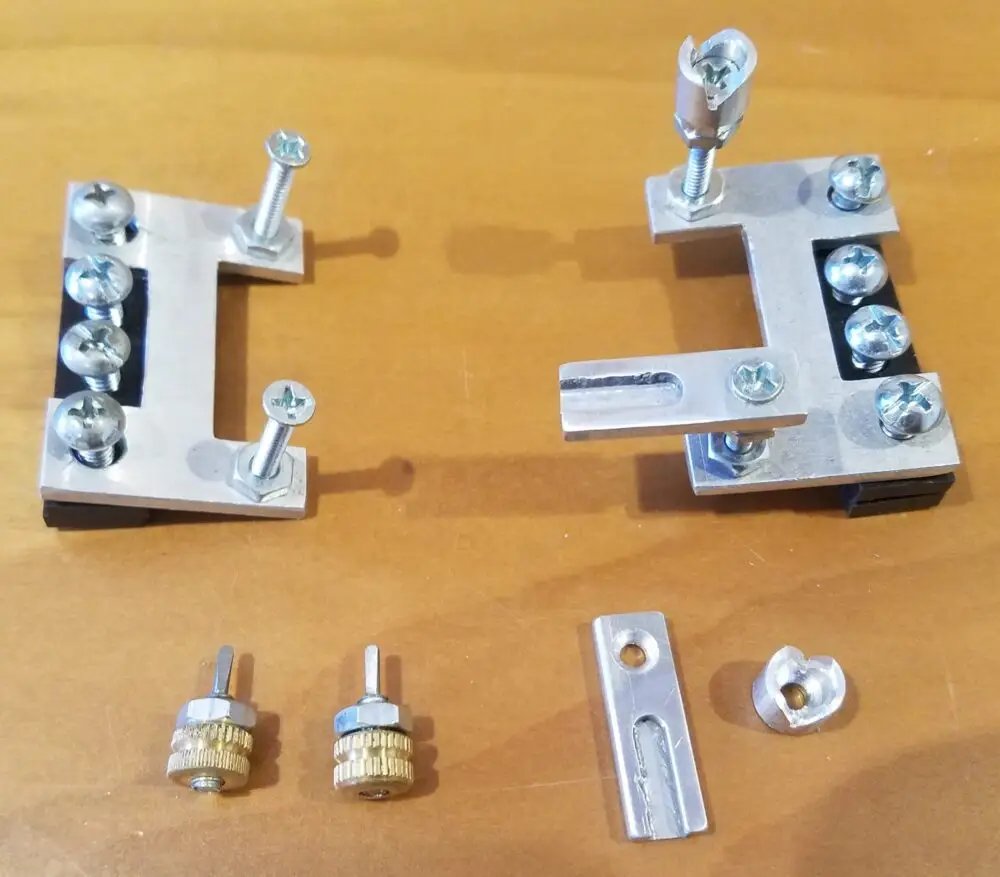

– Lifts machined from solid Aluminum & Plastic.
– The kit version you will need at least 2 sections of S-Gauge American Flyer track with the center ties removed. This is so the lifts can slide in & out for adjustment. 2 Sections of track is enough for most engines. Add additional sections of track for cars, about 1 section per car.
– Will NOT work on fasttrack.
– Works for many Steam & some Diesel S-gauge Engines but NOT all. Unfortunately we only have so many Engines we can test with. Our collection is mostly Pre & Post war Lionel Trains but we do have a few American Flyers & have been tested to work on all of them.
– Steam or Diesels where the power pick-up and drive wheels are the same wheels will not work. Works on Steam Engines with the power pick-up on tender.
– Articulating Steam Engines where the drive wheel float separately from the chassis such as a BIGBOY will not work.
See photo’s above or Display/Test Stations webpage for detail description, sample use photos & direction.All tools made in small production runs in our home shop. Actual tool may vary some as we our always making improvements to the designs.If you don’t see the tool you need, ask it may be in the works & the next idea.
