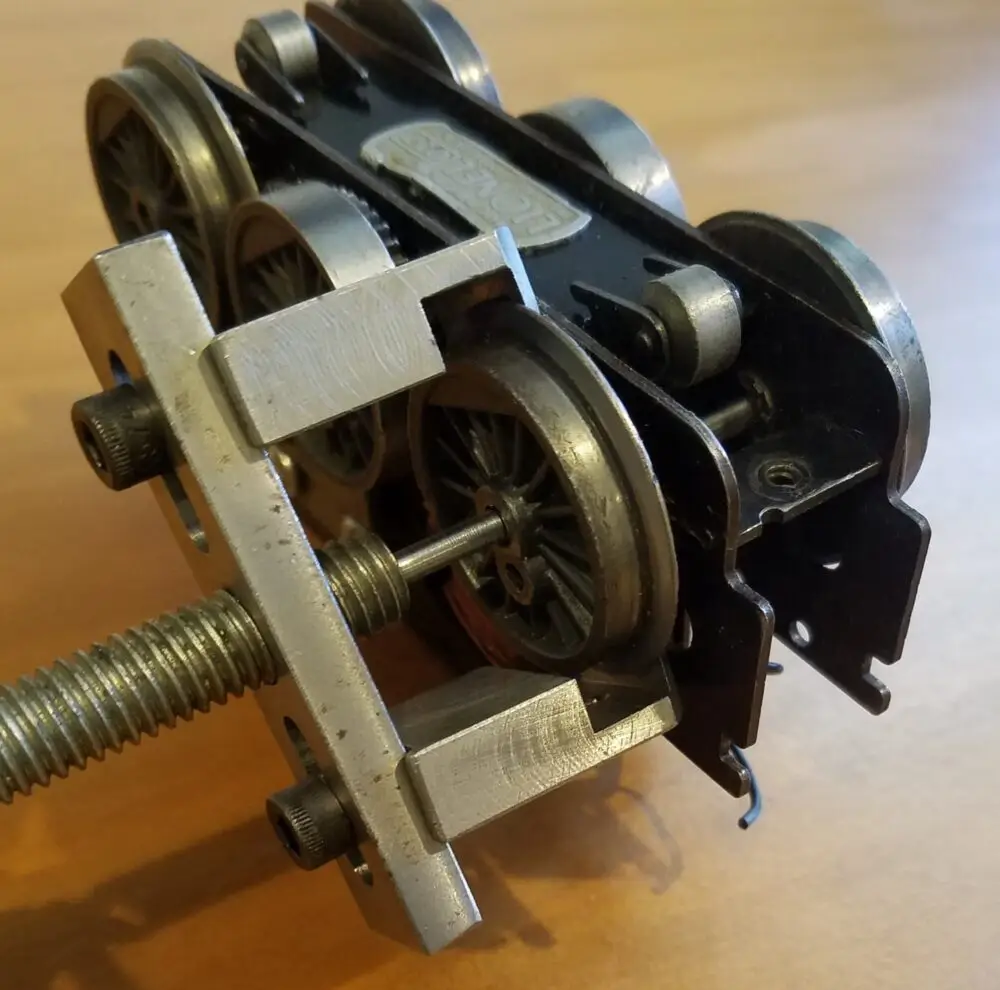

O gauge Wheel Puller w/ Standard & Special Duty Jaws Comb
- Our jaws hook the wheel deeper in so they are pulling on the thicker part of the wheel, this will greatly decrease the chances of break old brittle wheels.
- It was design to work on most older Lionel engines but will work on many other ones as well.
- Two different crossbars available depending on gauge.
- Top of jaws have an Alignment Groove
- Replaceable Harden Press Pin
- Machined from solid steel
Standard Duty Jaws
- Our Original Design
- This is our workhouse jaws. With the thicker larger jaws they are meant to get the job done.
- Lower Jaw Thickness : 0.10″

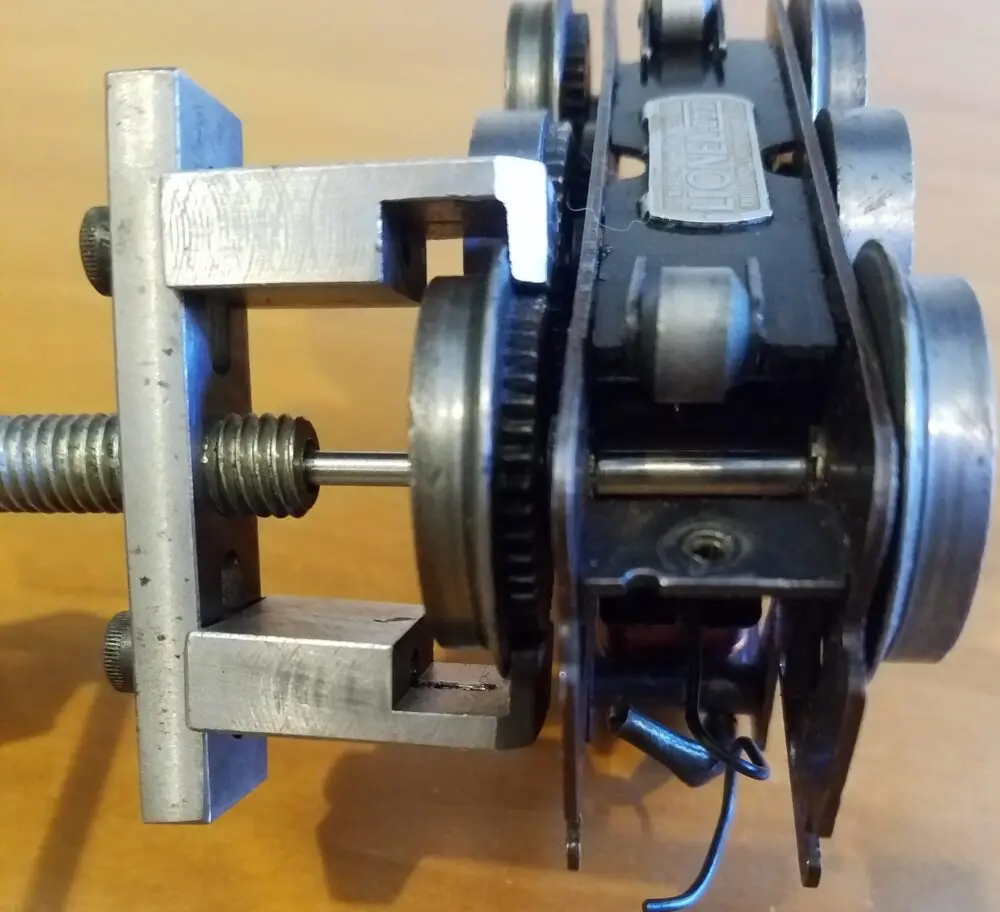

- Design for engine with the drive gears on the backside of the wheel.
- Will pull wheel off axle on other side after removing it from case. Even if you used the Special Duty Jaws to remove the first wheel.
- Stronger Jaws design
- Machined from solid steel.
- Unfortunately the Special Duty Jaws are prone to break because of their thin design. This is why we offer two different Jaws types
- Works on
– Lionel Scouts, Praire, & Hudsons Engines
– Will work on many other engines as well.
– very few Marx Engines
O Gauge CrossBar
- Min Wheel Diameter: 7/8″
- Max Wheel Diameter: 2″
Standard Gauge CrossBar
- Min Wheel Diameter: 1-3/4″
- Max Wheel Diameter: 3-1/4″
Includes:
- O gauge Crossbar Assembly w/ O Gauge crossbar with handle installed.
- Standard Duty Jaws (Set) : This is our workhouse jaws. With the thicker larger jaws they are meant to get the job done. Design for engine with the drive gears on the backside of the wheel. Will pull wheel off axle on other side after removing it from case. Even if you used the Special Duty Jaws to remove the first wheel. Stronger Jaws design
- Large Center Pin: Design for axles 1/8″ & larger (Drive Axles) Original
See photo’s above or Wheel Puller – Large Gauge webpage for detail description, sample use photos & direction. All tools made in small production runs in our home shop. Actual tool may vary some as we our always making improvements to the designs. If you don’t see the tool you need, ask it may be in the works & the next idea.
